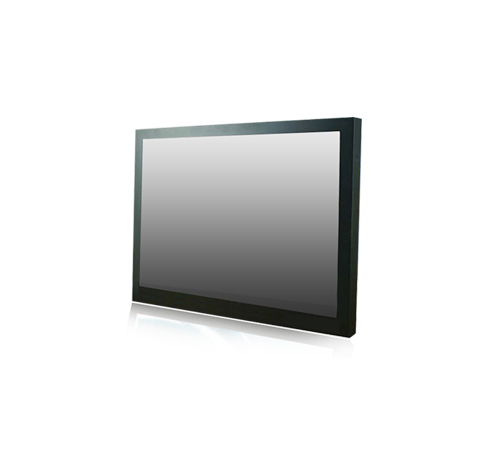

19" Chassis/Wall Mount LCD Monitor / 1280x1024 / 350nits LED VGA, DVI, HDMI Input, Side OSD (Model: ECH1900-DA5-DL02)

19" Industrial Chassis/Wall Mount Metal Housing LCD Monitor / 1280x1024 / 350nits LED VGA+DVI+HDMI Input / Side OSD

19" Industrial Chassis/Wall Mount Metal Housing LCD Monitor / 1280x1024 / 350nits LED VGA+DVI+HDMI Input / Side OSD

Overview
Specifications
Download

Features:

High contrast color TFT-LCD Monitor support resolution up to 1280x1024.
Power management system conforms to VESA DPMS and EPA Energy Star standards.
Universal Power adapter.
Support DDC1 & DDC2B for Plug & Play compatibility.
Advanced OSD control for picture quality adjustment.
Detachable stand for wall-mounting adjustment.
Heavy duty monitor with steel frame.
Custom design by request.

SYSTEM SPECIFICATIONS
Panel Type	19-inch TFT LCD
Viewable Size Image	19-inch
Active Display Area (mm)	376.32 (H) x 301.06 (V)
Number of Pixels	1280x1024
Contrast Ratio	1000:1
Display Color	16.7M
Brightness	350 nits
Viewing Angle(Typ.)	85/85/80/80
Signal Connector	VGA+DVI+HDMI
Power Source	DC12V, AC110 ~ 220V, Universal +/- 10%
Power Management	VESA DPMS Compliant
Operating Temperature	0 ~ +50°C
Storage Temperature	-20 ~ +60°C
Plug & Play	VESA DDC 1/2B

High Quality Parts

i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!

Customer Services

Customer Service

i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.

US Based Company

Most of i-Techs High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
