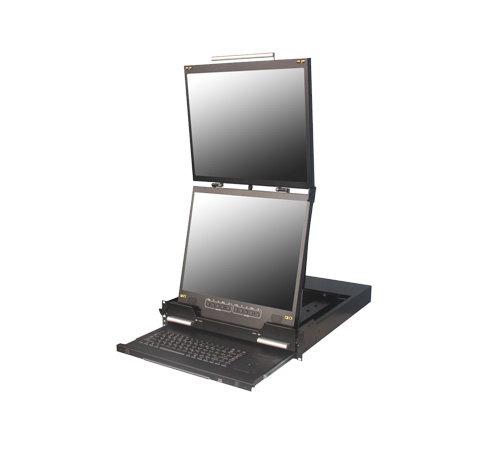

Dual Rail 2U 19" Dual LCD Rackmount Top & Bottom Vertical Monitor KB Console Drawer w/ Trackball (Model: ASK2D1900TB)

Dual Rail 2U 19" 1280x1024 Dual LCD Rackmount LCD Top and bottom Vertical monitor, Keyboard Console Drawer with Trackball Dual DVI and VGA input, built in speakers 2 x 2 watt speakers, 24" deep, 32lbs.

    Dual Rail 2U 19" 1280x1024 Dual LCD Rackmount LCD Top and bottom Vertical monitor, Keyboard Console Drawer with Trackball Dual DVI and VGA input, built in speakers 2 x 2 watt speakers, 24" deep, 32lbs.

    Inquiry/Quote Request
    ASK2D1900TB
    • Overview
    • Specifications
    • Download

    FEATURES:

    • 2U dual vertical 19 inch LCD Console Drawer
    • 2 gas struts to support LCD when open
    • Dual DVI & VGA Port
    • 1280 x 1024 resolution
    • Dual rail design, capable the LCD screen and keyboard tray Operated independently.
    • Front 1xUSB, Rear 2xUSB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
    • 87-key keyboard with trackball mouse.
    • USB 2.0 Keyboard & Mouse
    • Build in 2x 2 watts speakers

    OPTION:

    • Composite Video input
    • HDMI or Display Port input
    • 3G / HD / SD –SDI Broadcast grade input
    • 48V, 24V or 12V DC Power
    No. of ports 1
    KVM Connectors 2 x DVI-D & 2x VGA / 1 x USB for KB & Mouse / 1x Audio
    LCD Size Dual 19 inch
    Backlight LED
    Resolution 1280*1024
    Max.color 16.7M
    Luminance 250 cd/m2
    View Angel (H/V) 170 / 170
    Contrast Ratio 1000 : 1
    Port Selection N/A
    USB HUB Yes , Front x1 & Rear x 2 USB 2.0 Type A for USB Peripheral Device
    Audio 1 x 3.5mm Audio jack
    KB/Mouse Emulation USB 2.0
    Rack Depth ( rack cabinet front rails to rear rails ) 610mm to 940mm
    Power 100-240V AC 50/60Hz via IEC Type power cord
    Environment Operation temp: 0 to 50℃
    Storage temp: -20 to 60℃
    Humidity: 10% - 90%, non-condensing
    Shock: 10G acceleration ( 11ms duration)
    Vibration: 17 to 500Hz 1G PTP
    Physical Dimensions ( W x H x D ) / Net Weights ( KGs ) 443x87x609mm / 21.0
    Packing Dimensions ( W x H x D ) / Gross weights ( KGs ) 700x600x240mm / 29.5
    Accessory
    1.8meter IEC Type Power Cord x1 , 1.8meter DVI Cable x2 , 1.8meter VGA Cable x2 , 1.8meter USB Cable x1 ,1.8meter Audio Cable x1
