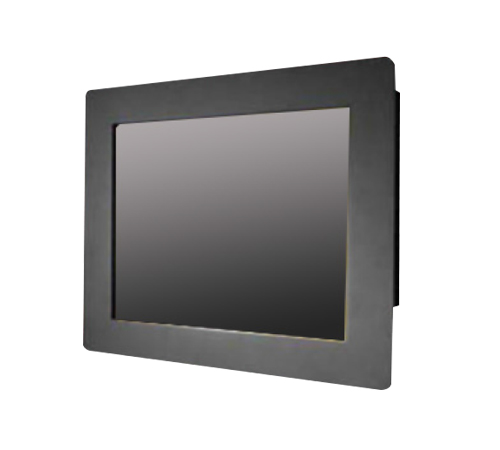

19" Panel Mount (Metal-5mm) LCD Monitor with 5 Wire Resistive Touch Screen and USB Controller (Model: EPM1900IP-ALB-TR)

19" Panel Mount (Metal-5mm) LCD Monitor with 5 Wire Resistive Touch Screen and USB Controller (Model: EPM1900IP-ALB-TR)

19" Panel Mount (Metal-5mm) LCD Monitor with 5 Wire Resistive Touch Screen and USB Controller (Model: EPM1900IP-ALB-TR)

Main Feature

    • Modular construction for more flexibility in terms of product configuration as well easy maintenance
    • Optional ultra high brightness
    • A brightness sensor for auto adjustment of the screen so that its neither too bright nor too dark
    • Standard VGA connector but also available with optional AV, SV, and AV-Looping
    • Optional build-in touch screen functionality for an interactive application
    • Energy-efficient based on advance power management
Inquiry/Quote Request
EPM1900IP-ALB-TR
  • Overview
  • Specifications
  • Download
  • Contact Sales
EPM Series: Industrial Panel Mount Metal Housing LCD Monitor (Optional Integrated Touchscreen/Front IP65/NEMA4x/Front Stainless steel bezel and more..)


Features Highlights:
  • 1. Metal 5mm Panel Mount for easy installation with stud mount and Clamps mount (Optional for Front AR Glass or Vandal Resistant glass)
  • 2. Optional for Resistive/ Capacitive/ SAW/ IR/ Projective Capacitive Touch screen
  • 3. Auto Video Signal ON / OFF Auto Always Power On
  • 4. Optional Stainless steel Bezel 3mm thick.
  • 5. Optional Integrated IP65 Front Panel Mount with water proof sealed Gasket

  • 1. Side OSD buttons can prevent unnecessary setting changes.
  • 2. VESA Mounting Hole Pattern
  • 3. Reliable built-in Power supply for 15" or above (Optional for 9-36V DC input)
  • 4. Standard VGA Input (Optional for DVI. HDMI, AV, BNC, AV looping and SDI)
  • 5. Optional for RS232 Remote Control Protocol: Command Code to set system

  TouchScreen

Our LCD has a wide selection option to choose which touchscreen.technology suits for you.

Four-Wire
Resistive
Five-Wire Resistive
Pen Touch
Capacitive
Surface Wave(Saw)
Infrared Touch (Ir)
PRODUCT SIZE 1.7" - 24" 10.4" - 24" 15" - 19" 12" - 24" 10.4" - 30" 10.4" - 42"
TOUCH LIFE 1 - 2 million
touches		 30 - 35million
touches		 100 million
touches		 100 million
touches		 50 million
touches		 Long-term reliability
SCRATCH RESISTANCE Hard Coated Hard Coated Hard Coated
(SiO˛)		 Hard Coated
(SiO˛)		 Glass Overlay
Moh's hardness rating of 7		 Glass Overlay
Moh's hardness rating of 7
CONTAMINANT RESISTANCE Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers
INPUT METHOD Finger, Gloved Hand, Stylus Finger, Gloved Hand, Stylus Stylus Pen Finger Finger, Gloved Hand, Soft pliable stylus Finger, Gloved Hand, Stylus
CONTROLLER USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232



  VIDEO Input

For Video inputs options:
  • DVI
  • DVI+HDMI
  • SVideo+AV
  • SVideo+AV+DVI
  • AV+Looping
  • DVI+AV+Looping
  • HD-SDI



  Optical Bonding

  • Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
  • Optical Bonding has a lower cost than most other competing technologies.
  • Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.



  RS-232 Remote Control

RS-232 Option for LCD/LED monitors.




  9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.



  Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor

Panel         Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio/Size                5:4/ 19" viewable diagonal area
Active Area / Pixel Pitch 376.3(H) x 301.1 (V) mm / 0.294(H) x 0.294(V) mm
Native Resolution / Colors 1280(H) x 1024(V) / 16.7 Million
Brightness / Contrast 300 cd/m2 (typ) / 800 :1
Response Time ^ 5 ms
Viewing Angle (typical) H. 160° (- 80° ~ + 80°) , V 160°(- 80° ~ + 80°)
Light Source CCFL , Long life, 50,000 hrs (typ)
Input Sources     PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh: 30 - 82Khz , Fv: 50 -75Hz
Audio System 2W Speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x AC Inlet
Convenient Features   Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 100 x 100 mm)
Power Internal power supply with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 32 watt, < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions   Physical W x H x D = 490.0 x 420.0 x 65.0 mm
Carton W x H x D = TBD
Weight N.W. / G.W. 7.0 Kgs / 8.0 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD


OPTIONS:

  • Touch: Resistive touch, Capacitive, SAW, Infrared, and Protected glass
  • Video/TV: Video/TV, SV + AV, SV + AV + AV_Looping, SV + AV + TV
  • Enhanced Panel: Panel with LED backlight, High brightness panel, Wide Temperature, Sunlight Readable
  • Others optional features: Digital Signage (Standalone), Networking Digital Signage, Motion Sensor, Light Sensor, Auto-Dimming
