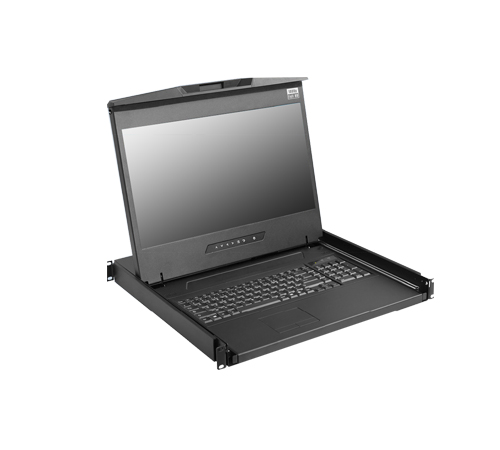

1U Rackmount 19" TFT LCD Monitor 1920x1080, 8-ports 2K KVM, 104-key KB w/ Touchpad (Model: NW119HD-K8e)
1U Rackmount 19' TFT LCD Monitor, 1920x1080 Native Resolution, 104-key keyboard with touchpad 1U Dual Slide 17" Widescreen LCD Console Drawer, 1920x1200 WUXGA resolution, 104-key keyboard with touchpad, full HD 1080p resolution, with 8-Ports 2K HDMI USB KVM All Cables are not included
NW119HD-K8e
- Overview
- Specifications
- Download
| LCD Panel |
| Panel size ( diagonal ) |
18.5" |
| Native resolution |
1920 x 1080 |
| Brightness ( cd/m˛ ) |
350 |
| Contrast ratio ( typ. ) |
1000 : 1 |
| Colors |
16.7 M |
| Viewing angle ( L/R/U/D ) |
89/89/89/89 |
| Response time ( ms ) |
20 |
| Dot pitch ( mm ) |
0.213 |
| Display area ( mm ) |
408.98H x 230.04V |
| Surface treatment |
Anti-glare, Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF (hrs) |
50,000 |
|
| |
| Physical |
| Product
( W x D x H ) |
Console w/ KVM |
442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch |
| Packing
( W x D x H ) |
Console w/ KVM |
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch |
| Net weight
|
Console w/ KVM |
12.5 kg / 28 lb |
| Gross weight
|
Console w/ KVM |
18.1 kg / 39.8 lb |
|
| |
| Mounting Distance |
| Console w/ KVM drawer |
470 ~ 800 mm 18.5 ~ 31.5 inch |
|
| |
| Power |
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption (console / KVM) |
Screen on |
Max. 14W / Max. 45W |
| |
Power saving mode |
Max. 2W / Max. 34W |
| |
Power button off |
Max. 1W / Nil |
|
| |
| Environment |
| Operating temp. |
-20 to 70°C degree |
| Storage temp. |
-20 to 70°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating altitude |
16,000 ft |
| Non-operating altitude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
|
| |
| Compliance |
| EMC |
FCC, CE & CCC certified |
| Safety |
CE / LVD & UKCA |
| Environment |
RoHS2 & REACH compliant |
|
