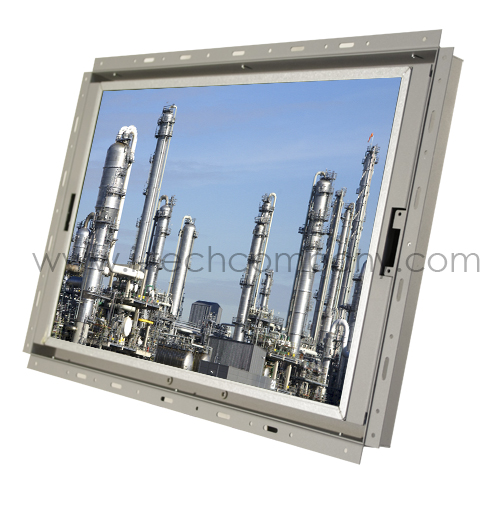

19" Widescreen Open Frame Panel LCD Monitor (Model:iOP-W1900)
- Overview
- Specifications
- Download
Features
• 19" widescreen LCD with high resolution 1440 x 900• Rugged construction against external impact
Options
• HDMI, S-Video + BNC & Audio• 3G / HD / SD-SDI Broadcast-grade input
• MCS Multi-display control solution
• W19" Touchscreen : Capacitive, Resistive
• MIL-type or lockable connector
• 48V, 24V or 12VDC power
• Quad display for CCTV
• TV - Analog
- An abundance of input connections that include HDMI, DVI-D, VGA, S-Video + BNC and audio
- On-chip Faroudja® DCDi Cinema processing
- Casing dimensions will be changed
Specifications
| LCD Panel | ||
| LCD Manufacturer | Samsung | |
| Size (diagonal) | 19" Widescreen TFT | |
| Max resolution | 1440 x 900 | |
| Brightness (cd/m2) | 300 | |
| Backlight | CCFL | |
| Colors | 16.7 M | |
| Contrast ratio (typ) | 1000 : 1 | |
| Viewing angle (H/V) | 160° x 160° | |
| Active area (mm) | 408 x 255 | |
| MTBF (hrs) | 50,000 | |
| Signal input | DVI-D / VGA | |
| Weight | ||
| Net / Gross | 5 kgs ( 11 lbs ) / 10 kgs ( 22 lbs ) | |

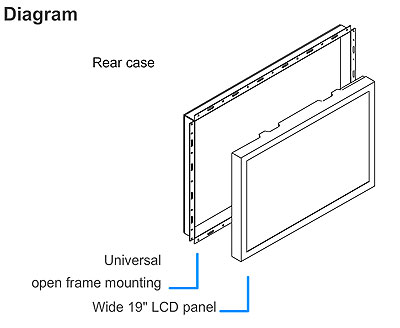

| Mounting | ||
| Universal mount / VESA mount | ||
| Environmental | ||
| Operating | 0 to 50°C Degree | |
| Storage | -5 to 60°C Degree | |
| Relative humidity | 5~90%, non-condensing | |
| Shock | 10G acceleration (11 ms duration ) | |
| Vibration | 5~500Hz 1G RMS random vibration | |
| Casing Color | ||
| Dark grey ( RAL 7037 ) | ||
| Regulatory | ||
| FCC, CE | ||
| Power | ||
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz | |
| Consumption | Max. 48 Watt, Standby 5 Watt | |
| Dimensions | ||
| Product | 506 x 60 x 335 mm / 19.9 x 2.3 x 13.2 inch | |
| Packing | 662 x 115 x 533 mm / 26.1 x 4.5 x 21 inch | |
| Specification | ||
| LCD Panel | ||
| LCD Manufacturer | Samsung | |
| LCD Type | Grade A industrial TFT LCD Panel | |
| Panel Size | Wide 19" diagonal (16:10) | |
| Display Area | 408 x 255 mm (HxV) | |
| Max. Resolution | 1440 x 900 | |
| Brightness | 300 cd/m2 (Typical) | |
| Color Support | 16.7 Mil. | |
| Viewing Angle | 80° / 80° / 80° / 80° (L / R / U / D) | |
| Contrast Ratio | 1000 : 1 (Typical) | |
| Tr Respones Time | 1.3 ms | |
| Pixel Pitch | 0.284 x 0.284 mm | |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune & Recall |
|
| LCD MTBF | 50,000 hrs | |
| Mechanical | ||
| Material | 1.2mm Steel | |
| Color | Black | |
| Dimension | 468 x 54 x 314 mm (WxDxH) | |
| Weight | 5 kg | |
| Package Information | ||
| Carton Box | 653 x 112 x 558 mm (WxDxH) | |
| Weight | 10 kg | |
| Signal Input | ||
| Input Video Signal | Analog RGB | |
| Video Level | Analog: 0.7Vp-p | |
| Sync Type | Separate H/V, Composite H/V | |
| Input Connector | D-Sub 15 pin VGA analog | |
| Video Input | ||
| Video Input | S-Video and Composite | |
| Connectors | S-Video (Mini-DIN 4), RCA | |
| Audio Input | ||
| Audio Input | Analog audio 2-channel (L/R) | |
| Connectors | Audio RCA x 2 | |
| Power | ||
| Power Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter | |
| Power Consumption |
Max. 48 Watt, Standby 5 Watt | |
| Environmental | ||
| Operation |
0° to 50°C Degree | |
| Storage | -5° to 60°C Degree | |
| Relative Humidity |
5~90%, non-condensing | |
| Shock | 10G acceleration (11ms duration) | |
| Vibration | 5~500Hz 1G RMS random vibration | |
| Option | ||
| BNC Input | ||
| Video Input | S-Video and Composite | |
| Connectors | S-Video, BNC | |
| DVI Input | ||
| Video Input | DVI digital input | |
| Connectors | DVI-D | |
| Audio Input | ||
| Audio Input | Analog audio 2-channel (L/R) | |
| Speaker | 3W x 2 | |
| TV Tuner | ||
| Signal Input | NTSC, PAL (I, B, G, H, M, D, N), SECAM (D, K, L, B, G) | |
| Connectors | RF | |
