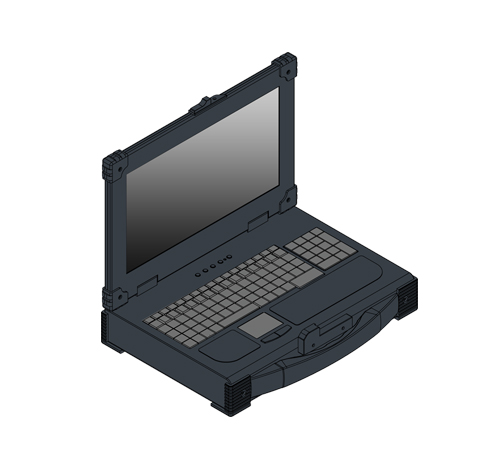

1U 15.6" 1920x1080 LCD All Aluminum Construction Portable Style, HDMI, USB port for KB & Mouse (Model: AVPW1560C1e)

1U 15.6" 1920 x 1080 LCD, all aluminum construction with bumper at the corner, portable style, HDMI input, USB port for Keyboard & mouse + CAT5 VGA USB KVM Extenderx1

1U 15.6" 1920 x 1080 LCD, all aluminum construction with bumper at the corner, portable style, HDMI input, USB port for Keyboard & mouse + CAT5 VGA USB KVM Extenderx1

Main Feature

    • 1 standard VGA USB CAT5 Extender
    • Compact size and lightweight design with fold and lock mechanism
    • High resolution for crisp and clear display
    • No software needed
    • 105-key cherry switch keyboard with touchpad
AVPW1560C1e
  • Overview
  • Specifications
  • Download
  • Contact Sales

With iTech Company's AVPW1560C1e, you are now able to simplify IT duties with an easy-to-install monitor and keyboard for your server set up. This is a great solution for interfacing with server racks while eliminating the limitations of a stationary rack-mounted KVM. It is ruggedly built and can endure harsh environment operations. It is also lightweight and easy to carry, with fold and lock design for convenient storage anywhere.

Remotely Control Computers
Sometimes, there is no room for a server or you want to put all your computers in a safe place. Set your AVPW1560C1e at a convenient and suitable control field over an already existing network construction. With this unit, you can remotely control systems up to 500 feet away.

Features:

  • 1 standard VGA USB CAT5 Extender
  • Compact size and lightweight design with fold and lock mechanism
  • High resolution for crisp and clear display
  • No software needed
  • 105-key cherry switch keyboard with touchpad

Transmitter & Receiver

  • Remote console up to 150M / 300M ( 500 /1000 feet) away with superior auto-adjust RGB signal capability
  • Dual user access at remote side, support USB/PS2 combo
  • Switch computers by push button or hot key commends
  • Audible feedback when switching
  • LED indicators for computer status or data transmission
  • Pure hardware solution makes network independent
  • Plug-and-Play , no software required
Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide /15.6" viewable diagonal area
Active Area / Pixel Pitch 344.16(H) x193.59(V) mm / 0.1793(H) x 0.1793(V) mm
Native Resolution / Colors 1920(H) x1080(V)/16.7M
Brightness / Contrast 250 cd/m2 (typ) / 500 : 1
Response Time < 12 ms
Viewing Angle (typical) H.90° (- 45° - + 45°)  ,  V. 65°(- 40° - + 25°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Power input 9~36V DC and provide a cable with DC jack and + - wire
Estimate power consumption Around 20 Watts (operating mode), 1 Watts (power saving mode).


Transmitter and Receiver Specs:

  Transmitter Receiver
USB Connector 2 x USB for KB& Mouse
DB-15 Connector 1 for VGA Monitor, 1 for VGA & Combo KB/ Mouse
RJ-45 Connector 8P8C
LEDs 2 ( Power / on line ) 2 ( Local / Remote )
Port selection N/A Hot key / Push button
Security User name and Password ( only for DCC-300T/R )
OSD Hotkey , Status (only for DCC-300T/R)
VGA Resolution ( Local Host) 1920x1440
VGA Resolution ( Remote Host) 1280 x 1024 ( DCC-150T/R ) /1024 x 768 ( DCC-300T/R )
Housing Metal
Power 100-240VAC, 50/60HZ via AC/DC cord
Operation Temperature 0 to 50 °C
Storage Temperature -20 to 60°C
Humidity 90%,non-condensing
Certificated CE/FCC
Dimension
Weight
