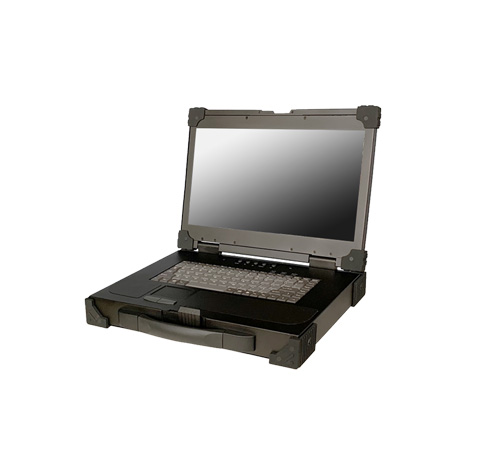

15.6" LCD 1000nits All Aluminum Construction Portable Style w/ VGA+DVI+HDMI and USB KB/Mouse (Model: AVPW1560HBe)
15.6" 1920 x 1080 LCD 1000nits, All Aluminum Construction with bumper at the corner, Portable Style with VGA+DVI+HDMI with USB keyboard/mouse
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
Welcome to the future of portable rackmount solutions with the 15-inch Portable Style Rackmount AVPW1560HBe. Designed for maximum efficiency and reliability, this compact unit integrates seamlessly into any standard 19-inch rack, offering a sleek and durable 15-inch LCD display. Ideal for mobile applications, broadcasting, military, and industrial environments, the AVPW1560HBE delivers superior performance with minimal space requirements. Its robust construction and versatile functionality make it the perfect choice for professionals who demand precision and portability. Experience unparalleled convenience and cutting-edge technology with the AVPW1560HBe, your go-to solution for high-quality rackmount displays.
Features:
- Rugged aluminum construction with rubber corner bumpers
- Portable, Folding, Light weight for easy handheld
- 15.6" widescreen LCD panel
- 1920 x 1080 support FHD with 1080p resolution
- high brightness panel - 1000 nits
- HDMI + VGA + DVI video input
- Rear 2xUSB 2.0 Type A, Sharing USB peripheral device for computer (ex, flash disk, hard driver, KB/Mouse)
- 88-key keyboard with touch pad mouse
- USB 2.0 Keyboard & Mouse
- Build in 2x 3 watts speakers
Options:
- Display Port input
- 3G / HD / SD -SDI Broadcast grade input
- Touchscreen
| LCD | Size | 15.6" |
| Backlight | LED | |
| Resolution | 1920*1080 Full HD (support resolution up to 1920x1200) | |
| Max.color | 262K | |
| Luminance | 1000cd/m2 | |
| View Angel (H/V) | 140 /120 | |
| Contrast Ratio | 650: 1 | |
| Video Input | HDMI, DVI-D, VGA | |
| USB HUB | 2x Rear USB 2.0 Type A for Peripheral USB Device | |
| Touch Screen | Yes, for option (Driver needed) | |
| KB/Mouse Emulation | USB | |
| Power | 100-240V AC S0/60Hz External Power Adapter | |
| Environment | Operation temp: 0 to S0°C Storage temp: -20 to 60°C Humidity: 10%-90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|
| Physical Dimensions / Net Weights | 390 mm (W) x 320 mm (D) x 70 mm (H) / 4KG | |
| Packing Dimensions /Gross weights | 580 mm (W) x 470 mm (D) x 58 mm (H) / 8KG | |
| Accessory | ||
| Power Adapter x 1, 1.8 meter HDMI Cable, 1.8 meter DVI-D Cable, 1.8 meter VGA Cable, 1.8 meter USB Cable, 1.8 meter Audio Cable (one each) | ||
