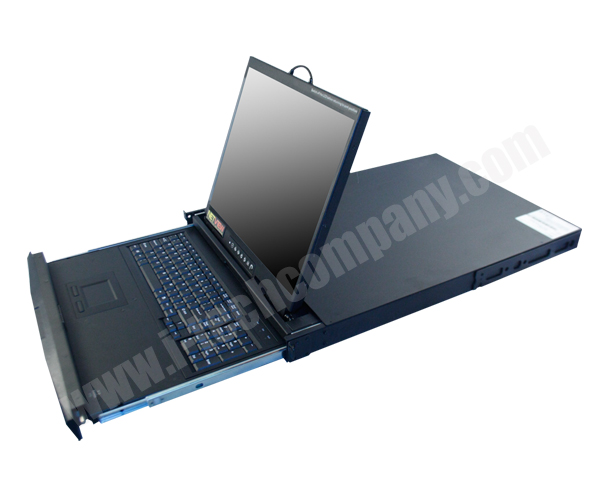

1U 17" Dual Slide SUN LCD Keyboard / KVM Drawer (Model: SDR117e)

1U 17" Dual Slide SUN LCD Keyboard / KVM Drawer (Model: SDR117e)

1U 17" Dual Slide SUN LCD Keyboard / KVM Drawer (Model: SDR117e)

Main Feature

    • 1U dual slide 17" LCD console drawe
    • Direct Support for SUN Micro 1152 x 900 native resolution
    • Secure remote user access across the world wide web
    • 104-key keyboard with SUN hotkeys
    • Enhanced aesthetics with new molded front panel and two point lock
Inquiry/Quote Request
SDR117
  • Overview
  • Specifications
  • Ordering Information
  • Download
  • Contact Sales

Options

•DC power : 12V / 24V / 48V / 125V / 250V

STRUCTURE DIAGRAM

STANDARD KEYBOARD
 Supporting Layouts



LCD Panel
Manufacturer AUO
Diagonal size 17" TFT
Direct Resolution 1152 x 900
Native Resolution 1280 x 1024
Brightness (cd/m2) 250
Backlight CCFL
Colors 16.7 M
Contrast Ratio (typ) 1000 : 1
Viewing Angle (H/V) 160° x 160°
Active area (mm) 338 x 270
MTBF (hrs) 50,000
Video input VGA
Power Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption (single console)
Sreen on Max. 25W
Power saving mode Max. 4W
Power button on Max. 1W
Environmental
Operating temperature 0 to 55°C degree
Storage temperature -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 5~500Hz 1G RMS random vibration
Casing Color
Black ( RAL 9005 )
Regulatory
Safety cUL, FCC & CE certified
Environmental RoHS2 & REACH compliant
Weight ( single console )
Net 12.6 kgs / 27.7 lbs
Gross 18.4 kgs / 40.5 lbs
Dimensions ( single console )
Product 441.6 x 650 x 44 mm / 17.4 x 25.6 x 1.73 inch
Packing 595 x 860 x 140 mm / 23.4 x 33.9 x 5.5 inch

CONSOLE CABLE
NX-6
6 feet DVI-D console cable ( bundle )
- DVI-D + USB, server end
- DVI-D + DB15 ( USB KB & MS ), console port		 Or NB-6
6 feet VGA console cable ( alternative )
- VGA + USB, server end
- DB15 ( VGA, USB KB & MS ), console port

For keyboard option add (e) touchpad or (b) trackball at the end of the model no.
Sample: SDR117-MC1116e

Matrix Cat6 KVM Local Remote IP 8-port 16-port 32-port
1 1 1 - SDR117-MC1116 SDR117-MC1132
1 1 2 - SDR117-MC2116 SDR117-MC2132
1 1 0 - SDR117-MC0116 SDR117-MC0132
1 2 0 - SDR117-MC0216 SDR117-MC0232
1 3 0 - SDR117-MC0316 SDR117-MC0332


Combo Cat6 KVM Local Remote IP 8-port 16-port 32-port
1 0 1 SDR117-CIP8 SDR117-CIP16 SDR117-CIP32
1 1 0 SDR117-CCE8 SDR117-CCE16 SDR117-CCE32
1 0 0 SDR117-C8 SDR117-C16 SDR117-C32
Cat6 KVM Dongle : DG-100S ( VGA-USB ) / DG-100 ( VGA-PS/2 ) / DG-100SD ( DVI-USB )


Matrix DB-15 KVM Local Remote IP 8-port 16-port 32-port
1 1 1 SDR117-M118 SDR117-M1116 -
1 1 2 SDR117-M218 SDR117-M2116 -
1 1 0 SDR117-M018 SDR117-M0116 -
1 2 0 SDR117-M028 SDR117-M0216 -
1 3 0 SDR117-M038 SDR117-M0316 -


Combo DB-15 KVM Local Remote IP 8-port 16-port 32-port
1 0 1 SDR117-IP8 SDR117-IP16 -
1 1 0 SDR117-8 SDR117-16 -
1 0 0 SDR117-S801 SDR117-S1601 -
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )


DVI-D KVM Local Remote IP 12-port - -
1 0 0 SDR117-12D - -
