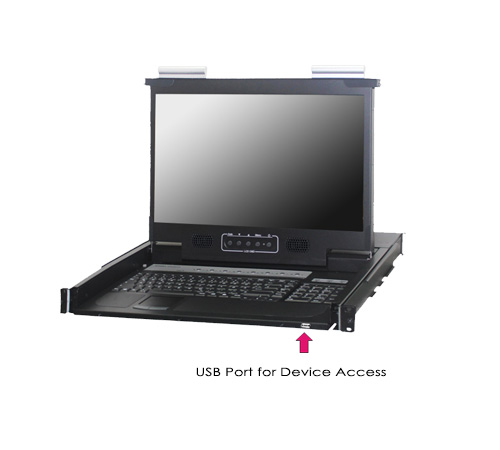

1U 17.3" Wide Full HD LCD Console Drawer w/ 8-Ports 104 key notepad KB touchpad (Model: AVPW117e-8H-250VDC)

1U 17.3" Widescreen Full HD 1920 x 1080 LCD Console Drawer with 8-Ports HDMI USB KVM, 104 key notepad keyboard w/ touchpad, 250V DC power with terminal block + and -

1U 17.3" Widescreen Full HD 1920 x 1080 LCD Console Drawer with 8-Ports HDMI USB KVM, 104 key notepad keyboard w/ touchpad, 250V DC power with terminal block + and -

Inquiry/Quote Request
AVPW117e-8H-250VDC
  • Overview
  • Specifications
  • Download
HDMI LCD console drawers provide a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades. The self-locking rails when in the fully extended open position and the ultra convenient auto lock release when the LCD panel is closed, make for simple and hassle-free operation. Available with 17.3" Full HD A-Grade LCD panels, integrated 8 ports USB-HDMI KVM switch.


Features:

  • 17.3" FHD 1920 x 1080 resolution
  • Support USB-HDMI interface.
  • 8 ports HDMI 2.0 input
  • Front 1x USB, Rear 1x USB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse).
  • Additional two USB console port to add local KB/Mouse.
  • Build in 2x 2 watts stereo speakers.
  • Durable 104-key keyboard and touch pad.
  • Quick and simple installation.
  • Self-locking and auto release rails for ultra convenience.
  • Port selection via push buttons or hotkey.
Direct no. of Computers 8
Maximum no. of Computers 8
LCD Size 17.3"
Backlight LED
Resolution 1920*1080 FULL HD (support up to 1920*1200)
Max.color 262K
Luminance 300cd/m2
View Angel (H/V) 140 / 120
Contrast Ratio 650 : 1
Port Selection Push Button, Hotkey
USB Local console Yes , USB x2 for KB/ Mouse
USB HUB 1x Front , 1xRear USB 2.0 Type A for Peripheral USB Device
KB/Mouse Emulation USB
Rack Depth 500mm to 750mm ( rack cabinet front rails to rear rails )
Power 120-373 VDC with terminal block + -
Environment Operation temp: 0 to 50℃
Storage temp: -20 to 60℃
Humidity: 10% - 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions / Net Weights 443x42x500mm (WxHxD) /13KG
Packing Dimensions / Gross weights 710x190x620mm (WxHxD) / 16.5KG
Accessory
1.8meter IEC Type Power Cord

Option Related Item
ASH-018 1.8meter HDMI Cable ASU-018 1.8meter USB Cable
