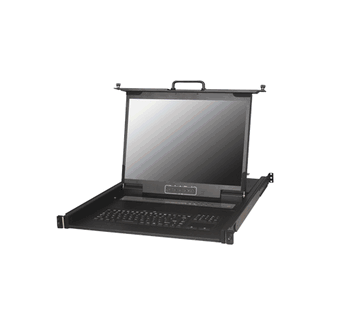

1U 17.3" Rackmount Rugged LCD Keyboard drawer w/ 8 ports DB-15 combo KVM switch (Model: AMil-W1730-S8e)

1U 17.3" Rackmount Rugged LCD Keyboard drawer 1920 x1080, Support up to 1920 x 1200, 400nits, Sealed 104-keys IP65 silicone USB only keyboard and touchpad with backlight, Front EMC glass, with 8 ports DB-15 combo KVM switch + Internal power supply with universal / Auto-Sensing, 100-240V AC 50/60Hz via 3 pins lock connector

1U 17.3" Rackmount Rugged LCD Keyboard drawer 1920 x1080, Support up to 1920 x 1200, 400nits, Sealed 104-keys IP65 silicone USB only keyboard and touchpad with backlight, Front EMC glass, with 8 ports DB-15 combo KVM switch + Internal power supply with universal / Auto-Sensing, 100-240V AC 50/60Hz via 3 pins lock connector

Inquiry/Quote Request
AMil-W1730-S8e
  • Overview
  • Specifications
  • Download

Features
  • Meets MIL-STD-810F/G standard
  • 1U 17.3" LCD Console Drawer, support 1920x1080 resolution
  • Support up to 1920 x 1200 resolution
  • Built-in 8 port combo KVM switch, support VGA-USB & VGA-PS/2.
  • Sealed 104-keys IP65 silicone keyboard and touchpad with backlight
  • MIL connector for power input
  • Self-locking and auto release rails for ultra convenience
  • Port selection via push buttons or On-Screen-Display (OSD)


Options
  • DC 9~36V power input
  • High brightness LCD panel, up to 1000 nits
  • Front AR or EMC glass protect screen


Optional Remote IP Access
  • An expansion slot allows you to add an optional KVM over IP module to enable remote access to your servers.
  • Gain BIOS level access to your servers for system maintenance, support or failure recovery via secure SSL authentication and encryption.
Direct no. of Computers 8
KVM Connectors 232 (Daisy Chain)
LCD Size 17.3"
Backlight LED
Resolution 1920*1080 Full HD ( support resolution up to 1920x1200 )
Max.color 16.7M
Luminance 400cd/m2
View Angel (H/V) 160 / 140
Contrast Ratio 600 : 1
Port Selection Push Button, Hotkey
Expansion Slot Yes, option for Remote IP Access
KB/Mouse Emulation USB & PS2
Rack Depth 600mm to 1000mm ( rack cabinet front rails to rear rails )
Power 100-240V AC 50/60Hz via 3 pins lock connector
Environment (MIL-STD-810G) Operation temp: 0 to 70°C (MIL-STD-810, Method 501.5 & 502.5)
Storage temp: -30 to 75°C (MIL-STD-810, Method 501.5 & 502.5)
Humidity: 5% - 95%, non-condensing (MIL-STD-810, Method 507.5)
Shock/Vibration: Procedure VI, 50G @ 11ms (MIL-STD-810, Method 516.6)
Altitude: 10,000 ft Operational, 30,000 ft Storage (MIL-STD-810, Method 500.5)
Physical Dimensions / Net Weights 482x42x600mm (WxHxD) /13KG
Packing Dimensions / Gross weights 720x160x860mm(WxHxD) /19KG
Accessories
1 x 1.8 Power Cord with lock connector

Option Related Items
AB-6 1.8meter 2-in-1 KVM Cable-USB&VGA AD-6 1.8meter 3-in-1 KVM Cable-PS/2&VGA
AB-10 3.0meter 2-in-1 KVM Cable-USB&VGA AD-10 3.0meter 3-in-1 KVM Cable-PS/2&VGA
AB-15 5.0meter 2-in-1 KVM Cable-USB&VGA AD-15 5.0meter 3-in-1 KVM Cable-PS/2&VGA
