TKP119IP8e
  • Overview
  • Specifications
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.

Main Features

• A Grade TFT-SXGA Display with 1280x1024 Resolution
• Energy Efficient Technology
• Auto Screen Power On/Off
• Superior Hinge Durability
• Smart-Rail System
• Key-lock Security Mechanism
• Adjustable Mounting Brackets
• Mounting Accessories & Cables Included


Product Overview

19" TKP Series - Discover the top choice of IT professionals

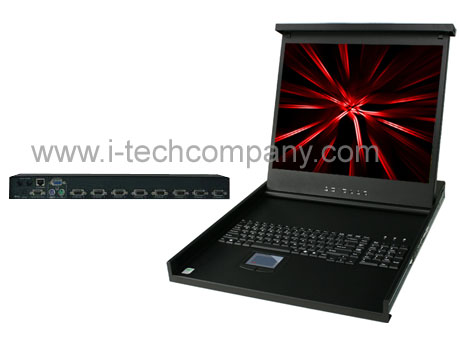

The iTechLCD OptiView TKP Series 1U Rackmount Console is a flat panel monitor, keyboard, and touchpad in a single unit featuring a sturdy flip-up design, adjustable mounting brackets, built-in On-Screen Display (OSD), and superior hinge & slide technologies. The console enables system administrators to conveniently control rack servers from a single location. With its slim Smart-Rail design, the console occupies only 1U of rack space and ensures complete extension of both the LCD monitor and keyboard in one easy motion.

The OptiView Series LCD Rack Consoles are part of a highly scalable solution that includes full integration with the OptiLink KVM Switches – conveniently fitting into the same 1U space.
Rackmount LCD Technical Specifications
Interface Provided
Connector Type: 15 pin HD D-Sub (HD-15)
Interface (Output): VGA

Connector Type: 6 pin mini-DIN (PS/2 style)
Interface (Output): Keyboard
Interface (Output): Mouse

Display (Projector)
Diagonal Size: 19 inches
Form Factor: 1U Rack-mountable
Image Contrast Ratio: 1000:1
Interface: VGA (HD-15)
Display Resolution: 1280 pixels(H) x 1024 lines(V)
Support Area: 16.77M colors (RGB 6-bit data + FRC data)
Active Display Area: 376.32(H) x 301.06(V)
White Luminance (cd/m2): 250 (center, Typ) @ 7.5mA
CCFL Life Time (LTCFL): 50,000 Hours
Technology: A-Si TFT Active Matrix
Type: Rackmount LCD Console

Header
Compatibility: PC

Input Device
Type: Keyboard, Touchpad

Regulatory Agency
Safety / EMI Certification: FCC, CE


KVM Switch Technical Specifications
General Information
Number of Servers Supported: 8
Number of Users Supported: Multiple users to one target server at a time
Max. Number of Daisy-Chain: 16 (including master)
Max. Number of Target Servers: Up to 256 servers when daisy-chained with OptiLink UPX-Series switches
Number of Local Console Ports: 1 (PS/2 Keyboard & Mouse, VGA)
Number of Remote IP-based Session:  1 (One session with multiple "shared" or "view-only" connections to one server)
Remote IP-based Session Interface: Win32-based and Java-based thin-client viewers
Switch and User Management: Secure SSL encrypted web-based management and OSD menus
Security: 256-bit SSL and 1024-bit PKI CAs; LDAP and RADIUS authentication, including Windows
Active Directory integration and RADIUS accounting; and up to 64 local user groups
Maximum Video Resolution:  2048 x 1536 (Local Console), 1600 x 1200 (Remote Session)
Target Server Selection:  Hotkeys, OSD, and Viewer interface
Operating Systems for Servers: Windows®, Novell®, Linux®, SUN Solaris™

Power
Power Input: DC 9V 2A max
Operating Voltage: 5V
Power Frequency:   60 Hz

Environmental
Operating Temperature: 32º to 104º F (0º to 40º C)
Storage Temperature: -4º to 140º F (-20º to 60º C)
Humidity: 0% to 90% RH, non-condensing

Mechanical
Size: Standard 19" 1U Rackmount
Housing: Metal
Dimension (L x W x H): 16.22 x 6.41 x 1.72 (in)

Ports
Daisy-Chain Out: HD15 Female
Console: VGA (HD15 Female), Keyboard (USB and PS/2), Mouse (USB and PS/2)
Server: HD15
Ethernet: RJ-45
Serial:  2 x RJ-11

Regulatory Agency
Safety / EMI Certification: FCC, CE

Misc
Other Features: - One local console connection and 8 target server connections per switch, plus multiple IP connections
  - PS/2 and USB keyboard and mouse connectivity to target servers
  - Shared, non-shared, and view-only sessions to a single target server
  - Automatic configuration of all daisy-chained switches
  - Full video optimization and mouse re-synchronization
  - Three video quality settings and three video compression schemes
  - Multi-level security and administrative privileges
  - Group management and user profiles
  - Automatic firmware upgrade capability to all connected subordinate KVM switches
  - Includes other UPX features not listed
