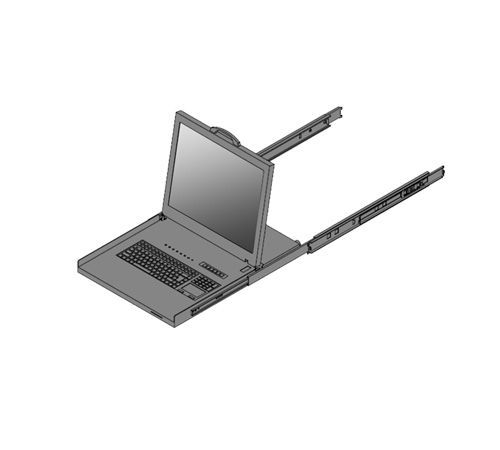

1U 19" 380nits Rugged Military Grade Monitor w/ KB, Touch-pad, and SCR, EIA-301E (Model: NKM119e-SCR)
Rugged 19" 380nits Military Grade Monitor, KB, Touch-pad, and SCR, EIA-301E, 1U, Depth: Less than 22", Weight: Less than 25 pounds, MTBF: 30,000 hours, Chassis: Rugged Heavy-Duty AISI-304 Stainless Steel with Anti-Corrosion, Salt-Fog Treatment
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
The 1U 19-inch Rugged Military-Grade Monitor with Standard Brightness 380nits, model NKM119e-SCR, is engineered to meet the demanding requirements of military and industrial environments. This robust monitor features a high-resolution display encased in a durable chassis, designed to withstand harsh conditions. With secure connectivity options and reliable performance, it is ideal for applications where resilience and clarity are critical. Whether deployed in the field or in an industrial setting, the NKM119e-SCR ensures consistent, high-quality visual output even in the most challenging situations.
| LCD | Display Size | 19" TFT LCD diagonal |
| LCD Grade | Military grade support native operating temperature from -30 to +85 degree C | |
| Resolution | 1280 x 1024 | |
| Brightness | 380 cd/m2 | |
| Contrast Ratio | 1000 : 1 | |
| Display Color | 16.7 M | |
| Aspect Ratio | 4 : 3 | |
| LED Backlight | LED backlighting | |
| Viewing Angle | +/- 85 (H) x +/- 80 (V) degrees | |
| Color Depth | 16.7 M | |
| Video Input | DVI | x1 DVI |
| VGA | x1 VGA | |
| HDMI | x1 HDMI | |
| Mechanical | EIA Standard | EIA-301E, 1U |
| Material | Rugged heavy-duty AISI-304 stainless steel, anti-corrosion treatment | |
| Handle Grip | Yes | |
| Color | Semi-gloss black | |
| Weight | Estimated 11 Kgs (25 lbs) | |
| Dimension | 465 (W) x 44.45 (H) x 562 mm | |
| Protect Glass | Protect Glass | Strengthen protective glass withstanding ,IK7, IK8, IK9 |
| Glass type | Strengthen Protective Glass | |
| Touch | Optional | |
| KB | Keyboard | Military grade IP-68 Water-proof keyboard |
| Touch Pad | Built in touch pad | |
| Keys | Silicon rubber | |
| Backlight | LED backlight | |
| No. of Keys | 104 Silicon keys with LED backlight | |
| Interface | USB | |
| Function Keys | 24 function keys | |
| Touch Pad | Touch Pad | Built in Touch Pad |
| Interface | USB | |
| Smart Card Reader | Transfer Speed | 480 Mb per second |
| Voltage | DC5V | |
| O.S. Support | Windows 7, 8, 10, Linux | |
| Read / Write | ISO-7816-3, T=0, T=1 CPU card | |
| Read / Write | SLE-4418 / 4428 | |
| Read / Write | SLE-4432 / 4442 | |
| Read / Write | SLE-4436/5536 | |
| Read / Write | I2C Memory Card | |
| IK Impact Rating | IK07 | Yes, compliant to IK07 |
| IK08 | Yes, compliant to IK08 | |
| IK09 | Yes, compliant to IK09 | |
| Power Consumption | Total Power Consumption | Less than 25 Watts |
| Power Input | AC 90~264V, 50/60 Hz | |
| Environmental (Compliance) | Operating Temperature | 0° to +50°C |
| Storage Temperature | -20° to +85°C | |
| Humidity | 5~95% at 30°C R.H., non-condensing | |
| Salt Fog | Yes, MIL-STD-810G compliant, test cost is required if you need certificate | |
| Vibration | MIL-STD-167-1, test cost is required if you need Certificate | |
| Shock | MIL-STD-901D, test cost is required if you need certificate | |
| EMC/EMI (Compliance) |
MIL-STD-461E | CE102, CE106, CS101, CS103, CS104, CS105, CS114, CS115, CS116, RE101, RE102, RE103, RS101, RS103 Note : Additional Test Cost is required of the above tests is required if you need certificate |
