1U Monitor / Keyboard Drawer with optional KVM

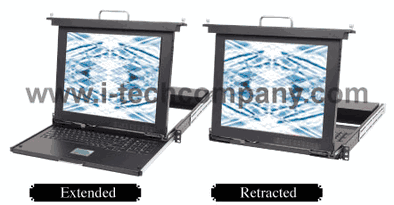

The DHR117 Series is an all aluminum 1U split drawer KVM sporting a 17” LCD Monitor. This monitor has a high contrast ratio and wide viewing angle with resolution of SXGA (1280X1024). The display is stowed fat and tilts up for use. The keyboard is mounted on an independent set of rails which allows it to be stored away when not in use.

The Clam Shell design is held open with two 30 lbs heavy-duty Torque hinges with a maximum opening of 96 Degs from closed. Friction slides are integrated along with mounting brackets to facilitate the installation in any standard 19” Rack enclosure. The drawer is held closed by thumbscrews.

The DHR117 Series is confgured with our 104 key “B” Keyboard (See the Integrated Keyboard Reference Guide) and Cirque 2 button glide pad.

The DHR117 Series has been ftted with our 8 port “E” KVM Switch with OSD menu, password protection, legacy connection, and hot key functionality. (See Integrated Back / KVM Reference Guide).

Standard Finish is Black Powder Coated Medium Texture, but it can be customized to any color or logo.

Features

Enclosure:
• Mounts in standard 19-inch rack cabinets 20-36 inch depths.
• Utilizes only 1U (1.75”)
• RSI Design (Rapid Start Installation). Less than 5 minutes!
• Rugged all Aluminum light weight construction (20 lbs.) Designed to satisfy Broadcast, Industrial, Commercial and Military requirements.
• Compact enclosure for rack mount and desktop applications.

Display:
• 17” Diagonal Active Matrix TFT LCD
• Featuring Samsung technologies
• Large viewing area
• Max resolution to SXGA (1280 x 1024 @ 60Hz).

Video Controller:
• Standard Analog RGB input (See V05X Controller in the Video Controller Ref Guide)
• OSD (On Screen Display) Monitor Controls

Keyboard / Pointing Device:
• IBM AT compatable 104 key membrane Key­ board with high quality integrated Cirque 2 button glide pad.

Power:
• +12 VDC Operation
• Low Power Consumption

Other Features / Options:
• Integrated KVM Switch (E, D & V)
• 8 port KVM with Hyper Jump discreet keys on monitor front face.
• All aluminum construction making it the lightest split drawer KVM all in one on the market.
• Special order options include: Custom Paint and logo.

	Technical Specifications
Model	DHR117SUT
Monitor Size	17"
Display Type	SXGA, Color, TFT-LCD, PVA, 4 CCFL Backlight, Ultra Thin for Touch
Max Resolution/Refresh	1280x1024
Aspect Ratio	4:3
Display Colors	16.78M
Brightness (Nits cd/m2)	250
Contrast Ratio	600:1
Response Time (Tr/Tf)(ms)	10
Pixel Pitch (HxW)(mm)	0.264 x 0.264
Power Management	EPA energy star, VESA compliance
Viewing Angle (Deg)	89/89/89/89
MTBF	30,000 - 50,000 hours
Surface Treatment	Haze 44%, Hard Coat (3H)
Temperature Operating (C)	0 to +50
Temperature Storage (C)	-20 to +60
Altitude Operating (Ft)	TBD
Altitude Storage (Ft)	TBD
Humidity Operating (%RH)	20 to 90
Humidity Storage (%RH)	5 to 90
Applicable Controllers	V052, V053
Video Connections:	aRGB(VGA), DVI, S-Video, CVS
Keyboards	K
KVM Switches	Du, GU
Chassis/ Drawer:
Slide Rails	Pre-integrated ball-bearing Slides with cable management guides.
Dimensions (WxHxD)	19 x 1.75 x 20-inch min. Can be installed in 20” - 36” Racks
Monitor Hinge	Heavy-duty Torque hinges to 60 lbs
Color	Powder Coated black, medium texture paint. Custom colors and logos available as special order
Weight (lbs)	18
Shipping Box (DWD / DWI)	DWD 23
