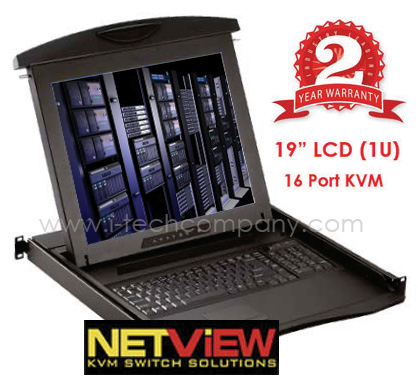

1U Rack Mount 19" LCD Keyboard PS/2 16-port KVM CAT5 Via CAT5 Extender (Model:NX119CE16)

1U Rack Mount 19" LCD Keyboard Drawer 16-port PS/2 KVM Switch, 2 consoles (Local + Remote Via CAT 5 Extenders) . Model:(NX119CE16e ) w/ Touch-Pad & ( NX119CE16b ) w/ Trackball

1U Rack Mount 19" LCD Keyboard Drawer 16-port PS/2 KVM Switch, 2 consoles (Local + Remote Via CAT 5 Extenders) . Model:(NX119CE16e ) w/ Touch-Pad & ( NX119CE16b ) w/ Trackball

Inquiry/Quote Request
NX119CE16
  • Overview
  • Download

1U Keyboard drawer



CAT5 2 Console KVM Diagram:


LCD Drawer & KVM Benefits:
  • 1U 17" or 19" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500mm ( 19.7" ) only
  • Enhanced aesthetics with molded front handle and two point lock

Options:
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 48V, 24V or 12VDC power

Designed for:


Options:


BNC + S-Video DVI-D DC Power Audio

BNC + S-Video Audio

DVI-D DC Power


Monitor Grade A 17" or 19" industrial TFT LCD panel

LCD Specifications:

LCD Panel
Manufacturer
Diagonal size
17" TFT
19" TFT
Max. Resolution
1280 x 1024
1280 x 1024
Brightness (cd/m2)
250
250
Backlight
CCFL
CCFL
Colors
16.7M
16.7M
Contrast Ratio (typ)
1000 : 1
1000 : 1
Viewing Angle (H/V)
160° x 160°
160° x 160°
Active area (mm)
338 x 270
376 x 301
MTBF (hrs)
50,000
50,000
Signal input
VGA
VGA
Casing Color
Black ( RAL 9005 )
Weight ( Single console )
Net
12.3 kgs
( 27.1 lbs )
12.5 kgs
( 27.5 lbs )
Gross
16.5 kgs
( 36 lbs )
17 kgs
( 37.4 lbs )
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory cUL, FCC, CE
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
Product
441.6 x 500 x 44 mm / 17.4 x 19.7 x 1.73 inch
Packing
590 x 823 x 140 mm / 23.2 x 32.4 x 5.5 inch



Console Cable:
NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB or PS/2, server end
- DB15 ( VGA, USB KB & MS ), console port
Keyboard Selection:

Supporting layouts



Dimensions ( with KVM )
Product
441.6 x 620 x 44 mm / 17.4 x 24.4 x 1.73 inch
Packing
590 x 823 x 140 mm / 23.2 x 32.4 x 5.5 inch
Weight ( Net / Gross )
NX117 13.3 kgs ( 29.2 lbs ) / 16.5 kgs ( 36.3 lbs )
NX119 13.5 kgs ( 29.7 lbs ) / 18.4 kgs ( 40.5 lbs )
Casing Color Black ( RAL 9005 )

KVM Integration :
(*) Stands for 17" or 19" LCD size
Matrix CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
-
NX11* - MC1116
NX11* - MC1132
1
1
2
-
NX11* - MC2116
NX11* - MC2132
1
1
0
-
NX11* - MC0116
NX11* - MC0132
1
2
0
-
NX11* - MC0216
NX11* - MC0232
1
3
0
-
NX11* - MC0316
NX11* - MC0332

Combo CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NX11* - CIP8
NX11* - CIP16
NX11* - CIP32
1
1
0
NX11* - CCE8
NX11* - CCE16
NX11* - CCE32
1
0
0
NX11* - C8
NX11* - C16
NX11* - C32
Cat6 KVM Dongle : IF-DUSB ( VGA-USB ) / IF-DPS2 ( VGA-PS/2 ) / IF-DUSBD ( DVI-USB )

Matrix DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
NX11* - M118
NX11* - M1116
-
1
1
2
NX11* - M218
NX11* - M2116
-
1
1
0
NX11* - M018
NX11* - M0116
-
1
2
0
NX11* - M028
NX11* - M0216
-
1
3
0
NX11* - M038
NX11* - M0316
-

Combo DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NX11*IP - 8
NX11*IP* - 16
-
1
1
0
NX11* - CE8
NX11* - CE16
-
1
0
0
NX11* - S801
NX11* - S1601
-
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )

DVI-D KVM
Local
Remote
12-port
1
0
0
NX11* - D12
DVI-D KVM Cable : NC-6 / 15 ( 6 or 15 ft )
