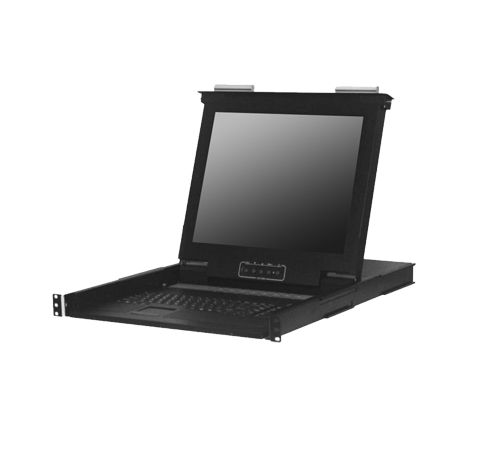

1U Rackmount 19" LCD Monitor Combo Single Port LCD Console Drawer VGA PS/2 & USB KB and Mouse (Model: AVP119-125VDC-UK)
1U Rackmount 19" TFT LCD Monitor w/notebook keyboard & Touch-pad Mouse Drawer 1280x1024 Resolution included one VGA PS/2 and USB Keyboard and Mouse Built-in DC 125V Power (72-144VDC in). UK Keyboard Layout.
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The 1U Rackmount 19-Inch Combo Single Port LCD Console Drawer, AVP119-125VDC-UK, from iTech is designed for efficient and reliable server management. This all-in-one console solution combines a 19-inch LCD, full keyboard, and touchpad within a 1U rackmount form factor, saving space while ensuring streamlined operation in demanding industrial environments. With its robust design and high-quality components, this console drawer meets the requirements of data centers, network closets, and industrial settings where durability and ease of use are paramount. |
Features: |
|
| Direct no. of Computers | 1 | |
| Maximum no. of Computers | 1 | |
| LCD | Size | 19" |
| Backlight | LED | |
| Resolution | 1280*1024 | |
| Max. Color | 16.7M | |
| Luminance | 250cd/m2 | |
| View Angel (H/V) | 170 / 160 | |
| Contrast Ratio | 1000 : 1 | |
| Port Selection | N/A | |
| Expansion Slot | N/A | |
| KB/Mouse Emulation | USB & PS2 | |
| Rack Depth | 500mm to 1100mm ( rack cabinet front rails to rear rails ) | |
| Power | 72~144VDC with Terminal Block "+" and "-" | |
| Environment | Operation temp: 0 to 50°C Storage temp: -20 to 60°C Humidity: 10% - 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|
| Physical Dimensions / Net Weights | 448x42x580mm (WxHxD) / 12.0KG | |
| Packing Dimensions / Gross weights | 715x140x780mm (WxHxD) / 19KG | |
| Accessories | ||
| 1.8meter VGA Cable, 1.8meter PS2 Cable, 1.8meter USB A Type Cable | ||
