White Chassis 4-ports 1U 17" Rackmount LCD Mac/Apple/Macintosh USB Keyboard Drawer with 4-ports DVI-D KVM with Built-in Speaker(Model: DMac1174)

White Chassis 4-ports 1U 17" Rackmount LCD Mac/Apple/Macintosh USB Keyboard Drawer with 4-ports DVI-D KVM with Built-in Speaker(Model: DMac1174)

White Chassis 4-ports 1U 17" Rackmount LCD Mac/Apple/Macintosh USB Keyboard Drawer with 4-ports DVI-D KVM with Built-in Speaker(Model: DMac1174)

Inquiry/Quote Request
1u-rackmount-keyboard-mac-apple-macintosh-dmac1174
  • Overview

Keyboard / Mouse
KVM 4 Ports
Inputs
Touch Screen
 Sunlight Readable

Overview

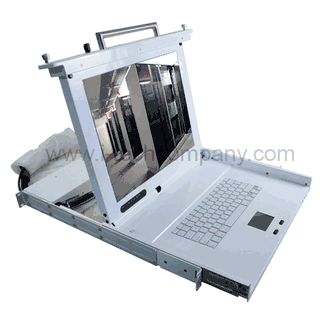

The DMac-1174.Mac Series is a high performance 1U LCD display drawer sporting 17" LCD Monitor. This monitor has a high contrast ratios and wide viewing angle with resolution at SXGA (1280X1024)

The display is stowed flat above the keyboard and tilts up for use. The Clam Shell design is held open with two 30 lbs heavy-duty Torque hinges with a maximum opening of 96 Degs from closed. Ball bearing slides are integrated along with mounting brackets to facilitate the installation in any standard 19" Rack enclosure.

The drawer is held closed by two thumb screws. The DMac-1174.Mac Series is configured with a Fully funtional Mac Keyboard and Glyde Pad Pointer.(See the Integrated Keyboard Reference Guide Option K for more details)

The DMac-1174.Mac Series has been designed to allow for multiple back panel termination options including aRGB and DVI ports with optional integrated 4 port DVI KVM Switch (See Integrated Back / KVMS Reference Guide Option G-Back). This option includes speakers in the front face. Standard Finish is Black Powder Coated Lite Texture, but it can be customized to any color or logo.

Features

Enclosure:

  • Mounts in standard 19-inch rack cabinets 20 - 36 inch depths.
  • Utilizes only 1U (1.75")
  • RSI Design (Rapid Start Installation). Less than 5 minutes!
  • Rugged all Aluminum light weight construction Designed to Satisfy Industrial, Commercial and Military requirements
  • Compact enclosure for rackmount and desktop applications.

    Display:

  • 17" &19" Diagonal Active Matrix TFT LCD
  • Featuring Samsung & LG technologies
  • Large viewing area
  • Max resolutions to XGA (1280x1024) for 17"

    Video Controller:

  • Standard Analog RGB and DVI-D inputs.
  • OSD (On Screen Display) Monitor Controls

    Keyboard / Pointing Device:

  • Many different Keyboard / Pointing Devices to choose from.

    Power:

  • +12 VDC Operation
  • Low power consumption

    Other Features / Options:

  • Optional Integrated 4 port KVM Switch with Speaker and Microphone ports and 2 USB devices.
  • Optional Integrated Speakers.
