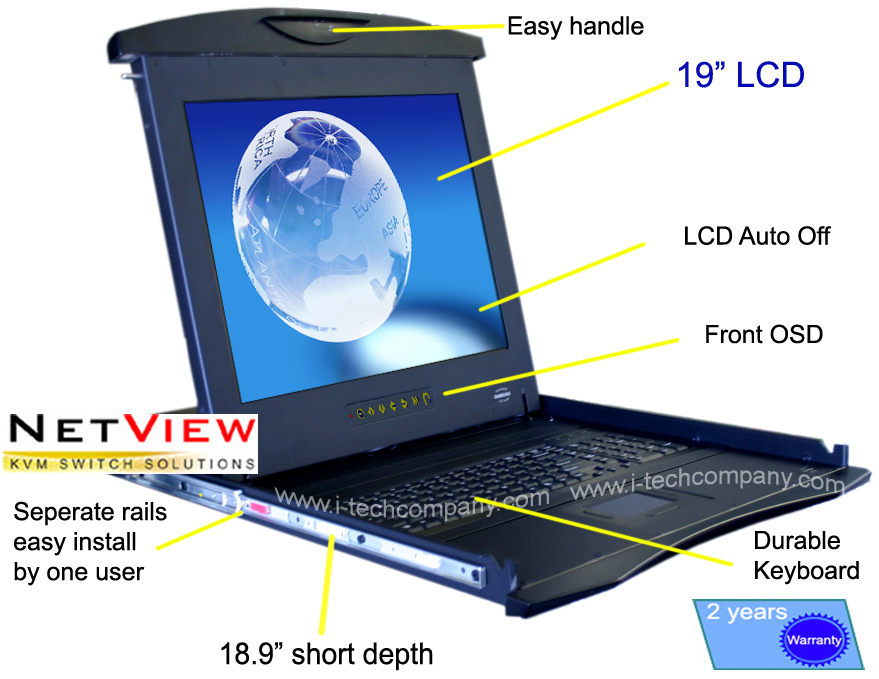

1U Short Depth Rackmount 19" LCD Monitor Keyboard Combo PS2 USB KVM Switch (Model:NX-SD119)

1U Short Depth Rackmount 19" LCD Monitor Keyboard Combo (PS/2 and USB) KVM Switch Drawer. Model:(NX-SD119e ) w/ Touch-Pad & ( NX-SD119b ) w/ Trackball
  • Front View
  • Front View
  • Back View
  • Side View
  • Port View
  • Keyboard
  • OSD
  • Accessories

1U Short Depth Rackmount 19" LCD Monitor Keyboard Combo (PS/2 and USB) KVM Switch Drawer. Model:(NX-SD119e ) w/ Touch-Pad & ( NX-SD119b ) w/ Trackball

Inquiry/Quote Request
NX-SD119
  • Overview
  • Download




1U Keyboard drawer

LCD Benefits LCD Specifications
LCD Fearures Mechanical Drawing

LCD Drawer Benefits

• Short depth design of 480mm (18.9�) only

• Depth will suit a 600mm rack application

• Single or �One Men� installation slides for easy, quick installation

• 104 key notepad keyboard with full numerical pad



Top

LCD Features

• 1U rackmount drawer with either 17" or 19" SAMSUNG LCD

• Either PS/2 or USB input to the LCD Drawer by cable selection

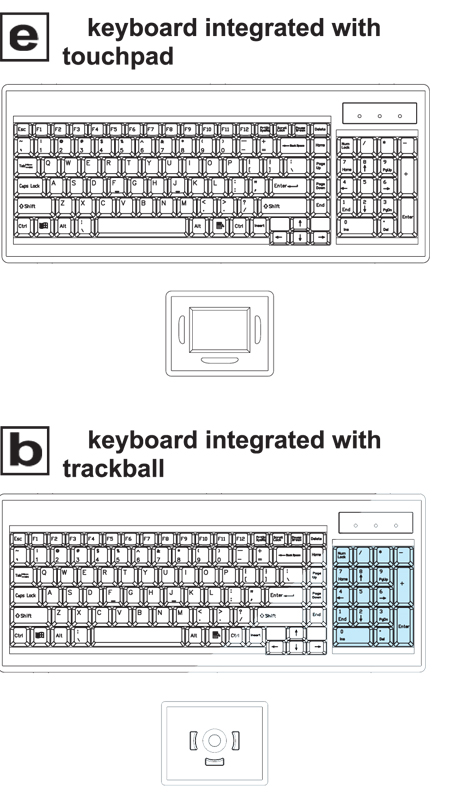

• Multiple keyboard language selections with either touchpad or trackball

• slide rails with fixed positions to prevent drawer movement when typing

• Multi lingual on screen display meun

• 12, 24 and 48 volt DC power options

Top

LCD Specification

LCD
Panel Samsung 19" LCD Panel
Screen Type TFT
Display Area 386.4(H) x 289.8(V) mm
Contrast Ratio 700 : 1
Viewing Angle 170 ° (H) x 170 ° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.242(H) x 0.242(W) mm
Response Time Tr=15ms, Tf=10ms (Typ.)
Brightness 250 cd/m2
Panel Color 16.7M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Video
Horizontal Synchronization 64 KHz (Max.)
Vertical Synchronization 60 (Max.)
Input Signal Analog RGB 0.7Vp-p
Power Management
VESA DPMS
Control
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save
External Connection
Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Dimension
Product dimension 43.9(W) x 4.45(H) x 65(D)cm
Packing dimension 73.5(L) x 57.5(W) x 18(H)cm

Top

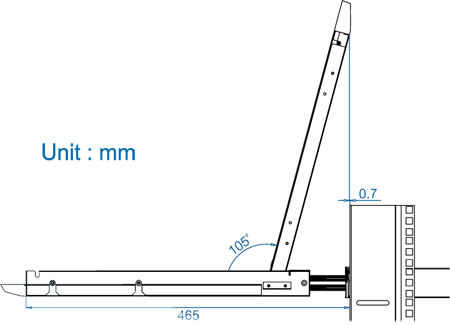

Mechanical Drawing
