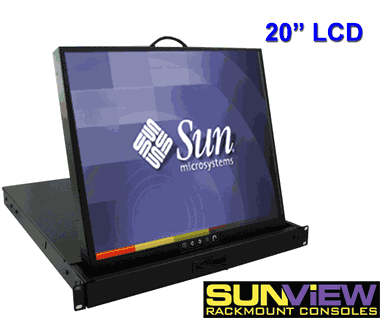

SunView 1U Rackmount SUN System Compatible 20" LCD Monitor Drawer (SUNView: SNP220)

1U Solaris Compatible 20inch Monitor Drawer (Model: SNP220)

1U Solaris Compatible 20inch Monitor Drawer (Model: SNP220)

Inquiry/Quote Request
SNP220
  • Overview
  • Specifications
  • Download

Features and Benefits
  • 1U 20" TFT LCD screen
  • The screen will sync with most SUN Resolution, including 1152 x 900 @ 66 or 76 Hz
  • 20" display, 1280 x 1024 native graphic resolution
  • Compatible with SUN, Apple, IBM, DELL, HP and USB Server
  • High-brightness 300-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display
  • Adjustable mounting brackets compatible with SUN rack depths of 24 to 36 inch
  • Industrial-grade heavy-duty steel construction
  • Built-in thumb screws for securing the unit when folded and pushed all the way in

Comes with

  • (1) SunView LCD drawer unit
  • (1) Standard VGA cable, 6-feet
  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (1) US Power cord
  • (1) User Manual
  • (1) Power Adapter 110/220V
Specification
LCD
Panel TFT 20" LCD Panel
Display Type TFT
Frequency 60Hz
Contrast Ratio 700 : 1
Viewing Angle 150° (H) x 135° (V)
Resolution 1280 x 1024 (Sync with most SUN Resolution, including 1152 x 900 @ 66 or 76 Hz)
Pixel pitch 0.294(H) x 0.294(W) mm
Response Time Tr=1.7ms, Tf=6.3ms (Typ.)
Brightness 300 cd/m2
Panel Color 16.7M
Storage Temp. -25 - 60°C
Operating Temp. 0 - 50°C
Backlight MTBF 20,000 hours under 20 - 30°C
Power Supply
Remote Adapter 110V - 220V AC Input 12V 5A Output
Adapter Size 4.3"(L) x 2.4" (W) x 1.2"(H)
Cable Legnght 6 ft (182cm)
Safety Approval FCC, CE
Diagram


Ordering Information
Model no. Description
 Net / gross weight
SNP117 1U height, 17" TFT LCD monitor drawer
12kg / 17kg
SNP119 1U height, 19" TFT LCD monitor drawer
13kg / 18kg
