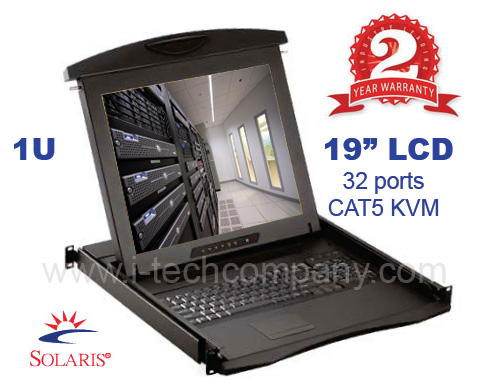

1U SUN Solaris Compatible Rackmount 19" LCD Monitor Keyboard CAT5 32-port KVM Via CAT5 Extender (Model:SNX119CCE32)

1U SUN Solaris Compatible Rackmount 19" LCD Monitor Keyboard 32-port CAT5 KVM Switch, 2 consoles (Local + Remote Via CAT 5 Extenders) . Model:(SNX119CCE32e ) w/ Touch-Pad & ( SNX119CCE32b ) w/ Trackball

1U SUN Solaris Compatible Rackmount 19" LCD Monitor Keyboard 32-port CAT5 KVM Switch, 2 consoles (Local + Remote Via CAT 5 Extenders) . Model:(SNX119CCE32e ) w/ Touch-Pad & ( SNX119CCE32b ) w/ Trackball

Inquiry/Quote Request
SNX119CCE32
  • Overview
  • Download


LCD Drawer & KVM Benefits:
  • 1U 17" or 19" LCD console drawer
  • Direct Support for SUN Micro 1152 x 900 native resolution
  • Secure remote user access across the world wide web
  • 104-key keyboard with SUN hotkeys
  • Short depth design of 500mm ( 19.7" ) only
  • Enhanced aesthetics with molded front handle and two point lock

Drawer Features & Options:
  • 48V, 24V or 12VDC power

Designed for:


Options:


DVI-D DC Power

DC Power


DVI-D


Monitor Grade A 17" or 17" industrial TFT LCD panel

LCD Specifications:

LCD Panel
Manufacturer
Diagonal size
17" TFT
19" TFT
Max. Resolution
1152 x 900 (Direct)
1280 x 1024 (Native)
Brightness (cd/m2)
250
250
Backlight
CCFL
CCF
Colors
16.7M
16.7M
Contrast Ratio (typ)
1000 : 1
1000 : 1
Viewing Angle (H/V)
160° x 160°
160° x 160°
Active area (mm)
338 x 270
376 x 301
MTBF (hrs)
50,000
50,000
Signal input
VGA or DVI-D
VGA or DVI-D
Casing Color
Black ( RAL 9005 )
Weight ( Single console )
Net
12.3 kgs
( 27.1 lbs )
12.5 kgs
( 27.5 lbs )
Gross
16.5 kgs
( 36 lbs )
17 kgs
( 37.4 lbs )
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory
cUL, FCC, CE
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions
Product
441.6 x 500 x 44 mm / 17.4 x 19.7 x 1.73 inch
Packing
590 x 823 x 140 mm / 23.2 x 32.4 x 5.5 inch

Console Cable:
NX-6 NB-6
6 feet DVI-D console cable ( bundle )
- DVI-D + USB, server end
- DVI-D + DB15 ( USB KB & MS ), console port 		6 feet VGA console cable ( alternative )
- VGA + USB, server end
- DB15 ( VGA, USB KB & MS ), console port


Keyboard Selection:

Supporting layouts

Se keyboard integrated with touchpad Sb keyboard integrated with trackball

Dimensions with KVM:
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
SNX117 Series
441.6 x 620 x 44 mm
590 x 823 x 140 mm
13.3 kgs ( 29.2 lbs )
16.5 kgs ( 36.3 lbs )
SNX119 Series
17.4 x 24.4 x 1.73 inch
23.2 x 32.4 x 5.5 inch
13.5 kgs ( 29.7 lbs )
18.4 kgs ( 40.5 lbs )

KVM Integration :

(*) Stands for 17" or 19" LCD size
Matrix CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
-
SNX11* - MC1116
SNX11* - MC1132
1
1
2
-
SNX11* - MC2116
SNX11* - MC2132
1
1
0
-
SNX11* - MC0116
SNX11* - MC0132
1
2
0
-
SNX11* - MC0216
SNX11* - MC0232
1
3
0
-
SNX11* - MC0316
SNX11* - MC0332

Combo CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
SNX11* - CIP8
SNX11* - CIP16
SNX11* - CIP32
1
1
0
SNX11* - CCE8
SNX11* - CCE16
SNX11* - CCE32
1
0
0
SNX11* - C8
SNX11* - C16
SNX11* - C32
Cat6 KVM Dongle : IF-DUSB ( VGA-USB ) / IF-DPS2 ( VGA-PS/2 ) / IF-DUSBD ( DVI-USB )

Matrix DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
SNX11* - M118
SNX11* - M1116
-
1
1
2
SNX11* - M218
SNX11* - M2116
-
1
1
0
SNX11* - M018
SNX11* - M0116
-
1
2
0
SNX11* - M028
SNX11* - M0216
-
1
3
0
SNX11* - M038
SNX11* - M0316
-

Combo DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
SNX11*IP - 82
SNX11*IP - 162
-
1
1
0
SNX11* - CE8
SNX11* - CE16
-
1
0
0
SNX11* - S801
SNX11* - S1601
-
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )

DVI-D KVM
Local
Remote
12-port
1
0
0
SNX11* - D12
DVI-D KVM Cable : NC-6 / 15 ( 6 or 15 ft )
