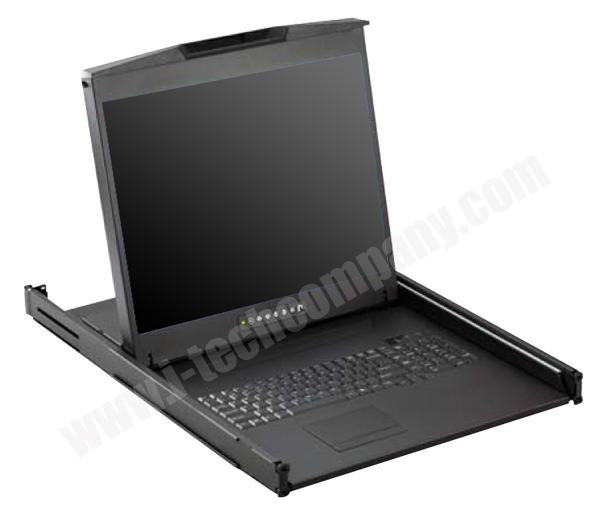

1U 20" LCD Console Drawer w/ 104 Key Notepad KB & Trackball (b), VGA + DVI-D + SDI Input (Model: NVP120b-SDI)
1U 20" LCD Console Drawer w/o KVM Combo PS2 + USB, DB-15, 104 Key Notepad Keyboard w/ Trackball (b), VGA + DVI-D + SDI Input
Main Feature
- 1U 20" LCD console drawer
- 1600 x 1200 native resolution / 16.7M colors
- 104-key keyboard with touchpad
- One Man installation design
- Enhanced aesthetics with molded front handle and two point lock
- 2-year standard warranty ( upgradable up to 5 years )
NVP120b-SDI
- Overview
- Specifications
- Download
| Console Port |
| Video input |
VGA + DVI-D + SDI |
| KB / MS |
USB interface |
| VGA console 6ft cable : NB-6A |
Drawer end : DB-15 + USB type A x 2
Server end : DB-15 + USB type A x 2 |
|
| |
| LCD Panel |
| Panel size ( diagonal ) |
20.1" |
| Native resolution |
1600 x 1200 |
| Brightness ( cd/m˛ ) |
300 |
| Contrast ratio ( typ. ) |
800 : 1 |
| Colors |
16.7 M |
| Viewing angle ( L/R/U/D ) |
89/89/89/89 |
| Response time ( ms ) |
16 |
| Dot pitch ( mm ) |
0.255 |
| Display area ( mm ) |
408H x 306V |
| Surface treatment |
Anti-glare, Hard-coating |
| Surface hardness |
3H |
| Backlight type |
CCFL |
| MTBF (hrs) |
45,000 |
|
| |
| Physical |
Product
( W x D x H ) |
Single console |
442 x 650 x 44 mm
17.4 x 25.6 x 1.73 inch |
| |
Console w/ KVM |
442 x 650 x 44 mm
17.4 x 25.6 x 1.73 inch |
Packing
( W x D x H ) |
Single console /
Console w/ KVM |
590 x 815 x 140 mm
23.2 x 32.1 x 5.5 inch |
| Net weight
|
Single console |
14.5 kg / 31.9 lb |
| Console w/ KVM |
15.5 kg / 34.1 lb |
| Gross weight
|
Single console |
22 kg / 48.4 lb |
| Console w/ KVM |
23.4 kg / 51.5 lb |
|
| |
| Mounting Distance |
| Single console drawer /
Console w/ KVM drawer |
660 ~ 870 mm /
26 ~ 34.3 inch |
|
| |
| Video Option |
| Digital |
DVI |
DVI-D single link |
| HDMI |
HDMI 1.3 / HDCP 1.1 |
| Analog |
S-Video ( 4-pin ) |
NTSC & PAL |
| Composite ( BNC ) |
NTSC & PAL |
|
| |
| Power |
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption (console / KVM) |
Screen on |
Max. 45W / Max. 78W |
| |
Power saving mode |
Max. 2W / Max. 34W |
| |
Power button off |
Max. 1W / Nil |
|
| |
| Environment |
| Operating temp. |
0 to 55°C degree |
| Storage temp. |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating altitude |
16,000 ft |
| Non-operating altitude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
|
| |
| Compliance |
| EMC |
FCC, CE |
| Safety |
CE / LVD & UKCA |
| Environment |
RoHS3 & REACH |
|
