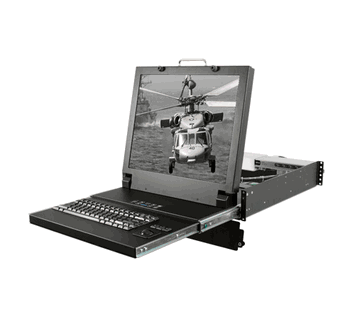

20.1" Industrial-/Military-Grade, 2U Rack Mount, Standard Flip-up LCD Monitor 1600 x 1200, 260 Nits, 1000:1, Viewing: 16.06" x 12.05", Response time 30 ms, Shock: 50 G, 6 ms ½ Sine Wave, Vibration: 1.0 G (58-500 Hz) (Model: Gmil-220)

Main Feature

- 15"/17"/19"/20" Diagonal Active Matrix TFT LCD Display
- XGA (1024 x 768 pixels) to WUXGA (1920 x 1080 pixels) Resolution
- Wide Viewing Angle (Horizontal & Vertical)
- High Brightness & Contrast Enhances Display Quality
- Fast Response Time Ideal for Real-Time and Video Applications

Overview
Specifications
Download
Contact Sales

ENCLOSURE

Rugged, All-Metal Construction Designed to Satisfy Industrial or MIL-STD-810-F Requirements
User-Adjustable LCD Display Friction Hinge for High Shock/Vibration Environments
Compact Enclosure Ideal for Desktop, Transportable or Rack Mount Applications
Optional 19" Rack Adaptor Kit
-Occupies Only 2U (3.5") Vertical Rack Space
-Adjustable Mounting Brackets for Racks from 18" to 30"
-Unique Locking Mechanism to Secure Display Head
-Bezel Hinges at Base Improve Safety
-Conserves Operator Space by Extending 16.75" to 18.0" when Deployed

DISPLAY

15"/17"/19"/20" Diagonal Active Matrix TFT LCD Display
XGA (1024 x 768 pixels) to WUXGA (1920 x 1080 pixels) Resolution
Wide Viewing Angle (Horizontal & Vertical)
High Brightness & Contrast Enhances Display Quality
Fast Response Time Ideal for Real-Time and Video Applications

VIDEO CONTROLLERS

Support for Interlaced and Non-Interlaced Video Sources
Support for Separate, Composite, Sync-On-Green and DVI-D Standards
Support for NTSC, SECAM, PAL, RS-170 Video with Input Format of Composite Video, S-Video and Component Video (YCrCb) [Optional]
Resolutions to 1920 x 1200 @ 60 Hz; Sub-resolutions to 75 Hz
Intuitive On-screen Menus for Display Calibration and User's Control
Advanced Imaging Features
-Auto Adjust, Brightness/Contrast/Color Adjustments, Image Expansion, Image Zoom, Foreign Languages, PIP, PBP, More

KEBOARD / POINTING DEVICE

Commercial-, Industrial- and Military-Grade Keyboards
Many Sealed Keyboards Available that Meet MIL-STD-810 and MIL-STD-901 Shock and Vibration Requirements
1-3/8" Diameter Sealed Trackball

POWER

+12 VDC Operation
Low Power Consumption (<50 Watts)

OPTIONS

NVIS-Compatible Displays Compliant with MIL-STD-3009
Sunlight Readable Displays and Other Optical Enhancements
Separate 1U Power Supply Mounts to Rear of Rack in Same Vertical Rack Space
Separate Rack Mountable Keyboards (Commercial-, Industrial- and Military-Grade)
Support for DVI-D Video, HDMI Video, NTSC Video (Composite)
Protective Glass Display Overlay for SL2-15X
Integrated 4-Port KVM Switch
Integrated CAC (Common Access Card) Smart Card Reader

DISPLAY
Size (Diagonal)	Viewing Area (W x H)	Resolution (Pixels)	Number of Colors	Luminance (0° Max.)	Contrast (Max.)	Response Time (Rise/Decay)	Horizontal Viewing Angle	Vertical Viewing Angle	Shock	Vibration
20.1	16.06" x 12.05"	1600 x 1200	16.7 Million	260 Nits	1000:1	30 ms	±85°	±85°	50 G, 6 ms ½ Sine Wave	1.0 G (58-500 Hz)

MTBF
Display	LED Backlight	LED Controller	Power Supply (Optional)
>50,000 Hours (Typical)	50,000 Hours (Minimum)	182,000 Hours (Minimum)	Depends on Supply Selected

ENVIRONTMENTAL
Temperature, Operating	Temperature, Storage	Humidity, Operating	Humidity, Storage	Altitude, Operating	Altitude, Storage
0° C to 50° C	-25° C to 60° C	8% to 95% RH Non-condensing	8% to 95% RH Non-condensing	10,000 Feet	40,000 Feet

MECHANICAL
Dimensions (H x W x D)	Construction	Finish	Weight, Operating	Weight, Shipping
2.88" x 16.00" x 17.00"	5052-H32 Aluminum/Steel	Black Matte Powder Coat & Clear Iridite	21 Pounds	30 Pounds

VIDEO CONTROLLER
Display Supported	640 x 480 VGA	800 x 600 SVGA	1024 x 768 XGA	1280 x 1024 SXGA	1600 x 1200 UXGA	1920 x 1200 WUXGA	Scaling	NTSC / SECAM / PAL / RS-170	Video Supported
All	60, 72, 75 Hz	56, 60, 72, 75 Hz	60, 70, 75 Hz	60, 75 Hz	60 Hz	60 Hz	On/Off	-	Separate, Composite, Sync-On-Green, DVI-D
All	60, 72, 75 Hz	56, 60, 72, 75 Hz	60, 70, 75 Hz	60, 75 Hz	-	60 Hz	On/Off	-	Separate, Composite, Sync-On-Green, DVI-D
All	60, 72, 75 Hz	56, 60, 72, 75 Hz	60, 70, 75 Hz	60, 75 Hz	-	60 Hz	On/Off	Digital Processor, Picture-In-Picture	Separate, Composite, Sync-On-Green, DVI-D

Most common video inputs listed. See below for a comprehensive list of supported video standards. Speak with a Sales Engineer for more information.
Most common video modes listed. Other video modes supported. Speak with a Sales Engineer for more information.
Supports advanced features such as Live Video, Picture-In-Picture (multiple user-selectable sizes), and Picture-By-Picture.
Video controller 115 is obsolete and shown for reference only.
