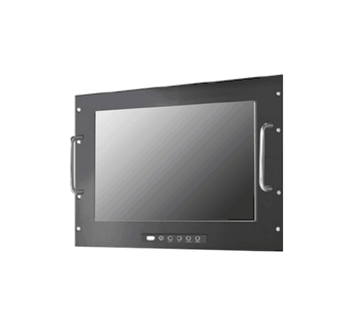

20.1" Rackmount LCD (3mm Metal Front Bezel) Monitor, VGA Input w/ 5 Wire Resistive Touch (Model: ERM2010BHBTR-IKR01)

20.1" Rackmount LCD (3mm Metal Front Bezel), Monitor, 1600 x 1200, 300 nits VGA Input Built in Power Supply with 5 Wire Resistive Touch Screen and USB Controller (Model: ERM2010BHBTR-IKR01)

20.1" Rackmount LCD (3mm Metal Front Bezel), Monitor, 1600 x 1200, 300 nits VGA Input Built in Power Supply with 5 Wire Resistive Touch Screen and USB Controller (Model: ERM2010BHBTR-IKR01)

Main Feature

    • 1600 x 1200 Native resolution, 300 cd/m2 brightness, 160 horizontal/vertical viewing angle VGA connector with optional AV.SV.AV-Looping
    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • Complete custom design/solution for OEM customers
    • Optional build-in touch screen for interactive application
Inquiry/Quote Request
ERM2010BHBTR-IKR01
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size 4 : 3 / 20.1" viewable diagonal area
Active Area / Pixel Pitch 408.0(H) x 306.0(V) mm / 0.255(H) x 0.255(V) mm
Native Resolution / Colors 1600(H) x 1200(V) / 16.7 Million
Brightness / Contrast 300 cd/m2 (typ) / 1000 :1
Response Time ≤ 8 ms
Viewing Angle (typical) H. 160° (- 80° ~ + 80°) , V. 160°(- 80° ~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x AC inlet
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 100 x 100 mm)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 40 watt, < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certifcation   FCC , CE
Dimensions Physical W x H x D = 482.0 x 400.0(9U) x 73.0 (mm)
Carton W x H x D = TBD
Weight N.W. / G.W. 8.5 Kgs / 9.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
