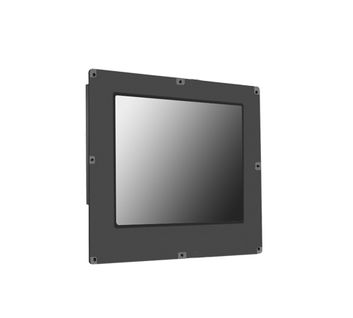

21.3" 1000nits Flush Mount LCD Front OSD, VGA, DVI, HDMI w/ PCAP Touch (Model: YFM2130PHB-PCAP)
21.3" Flush Mount LCD 6mm Front aluminum bezel / Front OSD / 1600x1200 / 4:3 / 1000nits LED / 1800:1 / VGA+DVI+HDMI signal input / PCAP Touch with USB controller / DC 12V Power Input / VESA Mount
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| Introducing our 21-inch Flush Mount LCD Monitor, designed with a sleek 6mm front aluminum bezel and advanced PCAP touch technology. Engineered for industrial environments, this monitor delivers exceptional performance with high brightness, wide viewing angles, and a robust design. Whether you're integrating it into a control panel or using it in a harsh setting, this monitor ensures reliability and clarity, making it the perfect choice for demanding applications. |
Features: |
|
| Active Area | 432x324mm |
| Pixels H x V | 1600x1200 |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | AVHA |
| White Luminance | 1000nits |
| Contrast Ratio | 1800 : 1 (Typ) |
| Optical Response Time | 20 msec |
| Power Input | DC 12V Power Input |
| Signal Input | VGA+DVI+HDMI |
| Surface Treatment | Anti-Glare, 3H |
| Support Color Physical Size (H x V x D) |
16.7M colors (RGB 6-bit data + HiFRC data) 563 (H) x 472 (V) x 79 (D) (Typ) mm |
| Temperature Range Operating Storage (Non-Operating) |
0°C ~ 50 °C -20°C ~ 60 °C |
| RoHS Compliance | RoHS Compliance |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
