21.5" Full IP66/IP69K Stainless Steel Panel PC, PCAP Touch w/ Intel J3455, 4GB RAM, 128GmSATA, Windows 10 (Model: VSIP2150J)

21.5" 1920x1080 250nits Full IP66/IP69K Stainless Steel Panel PC, PCAP Touch (F1 Stepping CPU) with Intel J3455/4GB RAM / 128GmSATA /5*M12(LAN/2x2USB/COM/DCin)/ VentValve/ EMX-APLP/ Windows 10

21.5" 1920x1080 250nits Full IP66/IP69K Stainless Steel Panel PC, PCAP Touch (F1 Stepping CPU) with Intel J3455/4GB RAM / 128GmSATA /5*M12(LAN/2x2USB/COM/DCin)/ VentValve/ EMX-APLP/ Windows 10

Inquiry/Quote Request
VSIP2150J
  • Overview
  • Specifications
  • Download

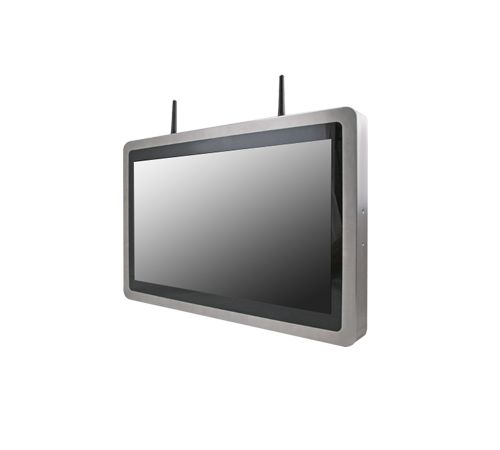

The 21-Inch Full IP66/IP69K Stainless Steel Panel PC from iTech is a rugged, waterproof, and dustproof industrial-grade touchscreen computer. Designed for harsh environments, it features a stainless steel enclosure, projected capacitive (PCAP) touch technology, and compliance with IP66/IP69K standards, ensuring durability in high-pressure washdowns and extreme conditions. Ideal for food processing, pharmaceutical, and outdoor applications, this panel PC offers high performance, reliability, and seamless operation.


Features:
  • Intel Celeron Processor J3455
  • Projective capacitive touchscreen full flat design
  • Waterproof power button
  • Rich and swappable I/O, 1 x LAN, 2 x USB, 1 x COM by M12 8-pin (male)with waterproof cover and chain
  • P66 air pressure relief valve
  • Metal waterproof connectors
  • Wide range DC in +12V ~ +24V
  • Wide temperature -10°C ~ 45°C
  • Full system IP66, IP69K
  • Multiple 0Ssupport (Win10, Linux, Android)
  • Optional WiFi/BT with waterproof antenna
  • Optional auto dimming / high brightness solution
System Information
Processor Intel Celeron Processor J3455, 2M Cache, up to 2.30 GHz
Platform Controller Hub Intel Apollo Lake SoC integrated
System Memory 4GB RAM DDR3L1600MTs SO-DIMM
I/O Chipset EC ITE IT8528E
Watchdog Timer H/W reset, 1sec. ~ 65535sec./1sec.step
H/W Status Monitor Monitoring system temperature and voltage with auto throttling control
TPM Option for Infineon SLB9665TPM 2.C
SBC EMX-APLP
CPU Cooler (Type) Fanless heatsink
Other 1 x WiFi with waterproof antenna (optional)
Expansion
Expansion 1 x M.2(2230)A-Key support WiFi module
Storage
Storage 128G mSATA
Other Storage Device 1 x2.5 Drive bay for SSD/HDD(by option)
Display
Graphic Chipset Intel HD graphics 500
Spec. & Resolution LVDS: Max. Resolution 1920x1080 @ 60Hz
eDP: Max. Resolution 4096x2160 @ 60Hz
Audio
Audio Codec Realtek ALC662
Ethernet
LAN Chipset 2 x Intel I211AT Gigabit Ethernet
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
Power Requirement
DC Input +12V~+24V
ACPI Single power ATX support SO, S3, S4, S5 and ACPI 3.0 compliant
Software Support
OS Win10 / Linux/Android 8.1
Certification
Certification Information CE/ FCC Class A
System Control
LED Indicator HDD LED, power LED

Panel
LCD Size 21.5", 16:9
Display Type Full HD
Resolution 1920 x1080
Pixel Pitch 247.95um(H)x247.95um(V)
Luminance 250 cd/m2
Contrast Ratio 1000
Viewing Angle 89(U), 89(D), 89(L), 89(R)
Response Time 22ms
Backlight LED
Touch Type Projective capacitive multi-touch up to 10 points
Touch Light Transmission 85%
Touch Controller EETI 80H84
External I/O
USB Port 2 x M12 8-pin (male)for 2 x USB 2.0 with waterproof cover and chain
LAN Port 1xRJ-45 8-pin (male) for LAN with waterproof cover and chair
COM Port 1x M12 8-pin (male)for COM (RS-232/422/485)with waterproof cover and chair
Internal I/O
SATA 1x SATAIII
Mechanical & Environmental
Operating Temp. -10°C~45oC(14°F~ 113°F), by flow = 0.5
Storage Temp. -20°C~60°C(-4°F~ 140°F)
Operating Humidity 40°C @ 95% Relative humidity, non-condensing
Dimension (W x L x H) 562x365.8 x49mm
Weight 9.4 Kg
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms
Drop Test STA 2A, IEC-60068-2-32Test:Ed
IP Rating Whole system IP69K, IP66
Mounting Kit Wall/ Stand /VESA 75mm x75mm, 100mm x 100mm
Power Mode AT/ATX(ATX is default)
Construction Stainless steel (Front), Stainless steel (Rear)
Component
Adapter Input: 100- 240Vac/ 50- 60Hz
Output: 60Wadapter (24V@ 2.5A adapter) AC-DC adapter (need waterproof M12/3pin-D2.5 DC Jack-plug 200cm cable for M12 DC in connector)
