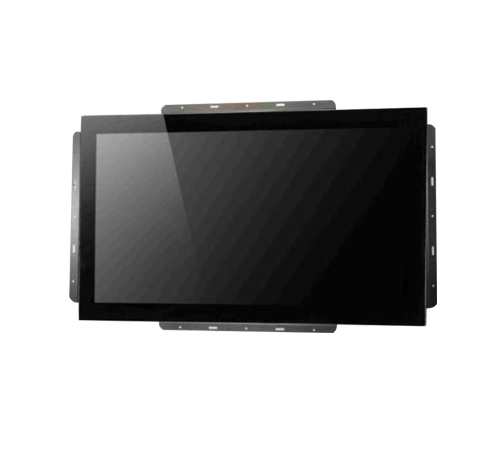

21.5" 2000nits Brightness Open Frame Monitor PCT Touch w/ VGA/DVI/HDMI, 12V DC-in (Model: GOPW2150HB2-PCAP-V3)
21.5" 2000nits Brightness Open Frame Monitor PCT Touch 1920x1080 resolution, VGA/DVI/HDMI, RS232, USB(TP), Black Painted Metal Chassis, VESA Mount, Power: 12V DC-in, Auto Brightness / Temperature Control, Accessories: HDMI Cable*1, 50cm light sensor cable*1
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
Features: |
|
| FUNCTION | ITEMS | DESCRIPTION | REMARK | |
| Display | Display area (mm) | 476.064 (H) x 267.786 (V) | 21.5" 16:9 diagonal | |
| Brightness (nits) | 2000 | TFT surface | ||
| Optimum resolution | 1920 x 1080 | FHD | ||
| Contrast Ratio | 1000: 1 | |||
| View angle | 178 / 178 degree | |||
| Backlight Life | 50K hours | |||
| Touch panel | Type | PCAP | ||
| Total thickness | 2.7 mm | |||
| Support OS | Windows / Linux / Android | USB type B | ||
| Video & Audio | Video input | VGA / HDMI / DVI | ||
| Audio | Jack-in | Yes | ||
| Built-in speaker | (Option) | |||
| Control | OSD | 5 keys | (LED) Power/Menu/Left/Right/Auto | |
| RS232 | Yes / D-sub (9 pin) | |||
| Auto brightness | Yes, External sensor cable | option for waterproof sensor housing | ||
| Power | Power Input voltage | DC 12V | DC jack:Φ5.5mm /ψ2.5mm | |
| Consumption(W) | 39 (typ.) | |||
| Mechanical | Outline (mm) | 549.3 x 340.7 x 53.6 (D) | With brackets | |
| Mounting | Ear mounting | 100x100 (mm) VESA | ||
| Weight | (TBD) | |||
| Environment | Operating temp. | -10~50 °C | ||
| Storage temperature | -20~60 °C | |||
| Special items | Not Applied | |||
| Certification | CE / FCC | |||
