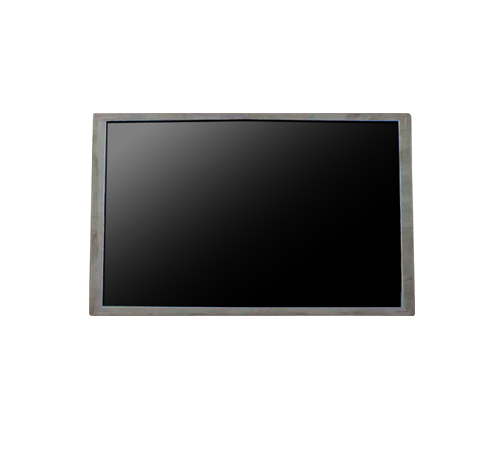

21.5" Touch Open Frame Module 1000nits, HDMI + DP Input w/ PCAP Touch + USB controller (Model: YSKW2150PCAP-B1)
21.5" Touch Open Frame Module 1920x1080 / 1000nits LED / HDMI + Display Port input / PCAP Touch with AG coating with USB controller Front Glass Bezel 509mm x 306mm x 29.05 (WxHxD)
X
Inquiry/Quote Request
- Specifications
- Download
| ITEM | SPECIFICATION |
| Panel Type | 21.5-inch TFT LCD |
| Screen Diagonal | 21.5-inch |
| Active Display Area (mm) | 478.57(H) x 270.05(V) |
| Pixel Pitch (um) | 247.95 (per one triad) x 247.95 |
| Number of Pixels | 1920 (x3) x 1080 |
| Contrast Ratio | 1000:1 |
| Response Time | 25ms |
| Display Color | 16.7 M colors (RGB 8 bits) |
| Brightness (cd/m) | 1000 cd/m |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | HDMI + Display Port |
| Power Source | DC +12V(+/-10%) |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | 0 ~ +50 °C |
| Storage Temperature | -20 ~ +60°C |
