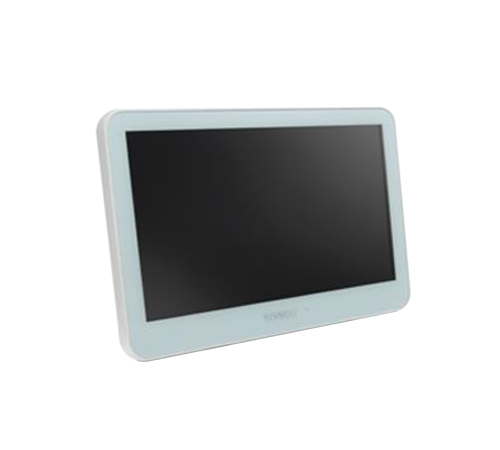

21.5" 1920 x 1080 True Color Diagnostic Panel, Medical Grade Monitor, Support HDMI, DP, DVI-D, Audio-in,IEC60601-1-2 4th Edition Compliance USB touch (Model: WMCHW2200-PCT)

21.5" 1920x1080 True Color Diagnostic Panel, Medical Grade Monitor, Support HDMI, DP, DVI-D, Audio-in,IEC60601-1-2 4th Edition Compliance USB touch ; 1x HDMI-in + 1x DVI-D in + 1x DP-in ports ; 60W medical power adapter, 1. 1.5W Speaker 2. Included DP cable (Model: WMCHW2200-PCT)

21.5" 1920x1080 True Color Diagnostic Panel, Medical Grade Monitor, Support HDMI, DP, DVI-D, Audio-in,IEC60601-1-2 4th Edition Compliance USB touch ; 1x HDMI-in + 1x DVI-D in + 1x DP-in ports ; 60W medical power adapter, 1. 1.5W Speaker 2. Included DP cable (Model: WMCHW2200-PCT)

Main Feature

    • 21.5" True Color Diagnostic Panel
    • Anti-bacteria (MRSA) Plastic Housing
    • IP65 at Front Side, IPx1 for Whole System
    • Built-in a Pair of 5W Stereo Speakers
    • Support HDMI, DP, DVI-D, Audio-in
    • Support Optional Desktop Stand, and VESA 100
    • IEC60601-1-2 4th Edition Compliance
Inquiry/Quote Request
WMCHW2200-PCT
  • Specifications
  • Download
  • Contact Sales
Display Size 21.5" wide TFT-Color LCD (16:9)
Display 1920 x 1080 (Full HD), 16.7M colors (MVA, 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ.)
Touch Screen Full flat projective capacitive touch panel /    Light Transmission: 90% ± 3% / Hardness: 7H pencil, pressure 750g/45° / Life: 100M times
USB USB2.0 x 1
Audio 3.5mm phone jack connector x 2 (Line-out, Mic-In)
Video DVI-D x 1, DP x 1, HDMI x 1
Control Key (R to L) Menu / Enter // Down / Mute // Up / Speaker adjust // Auto / OSD OFF // Power On / Off
Power Input DC12V, 60W MAX
Power Adapter AC input 100 ~ 264V / 47 ~ 63 Hz / DC output 12V
Temperature Operating Temperature: 0~45°C (chamber) / Storage Temperature: -20~60°C
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 at Front Side, IPx1 for Whole System / Plastic /Hospital white
Dimensions (Net) 540.0mm (H) x 375mm (V) x 78mm (T)
Weights (Net) 6.4 kg (w/o power adapter/battery pack)
Mounting Optional Stand, VESA 100
Certification CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1)
VCCI: 2016-11, Class B (PSU with PSE)
FCC: Part 18 Class B
ISO 14971 / Energy star 6.1 compliance
