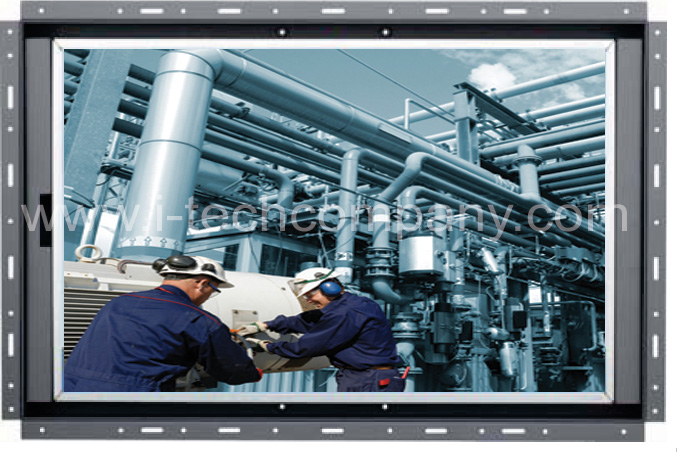

22" Widescreen Open Frame Panel LCD Monitor (Model:iOP-W2200)

Features

• 22" widescreen LCD with high resolution 1680 x 1050
• Rugged construction against external impact

Options

• HDMI, S-Video + BNC & Audio
• 3G / HD / SD-SDI Broadcast-grade input
• MCS Multi-display control solution
• W22" Touchscreen : Capacitive, Resistive
• MIL-type or lockable connector
• 48V, 24V or 12VDC power
• Quad display for CCTV
• TV - Analog




- An abundance of input connections that include HDMI, DVI-D, VGA, S-Video + BNC and audio
- On-chip Faroudja® DCDi Cinema processing
- Casing dimensions will be changed

Specifications

LCD Panel
LCD Manufacturer	Samsung
Size (diagonal)	22" Widescreen TFT
Max resolution	1680 x 1050
Brightness (cd/m2)	250
Backlight	CCFL
Colors	16.7 M
Contrast ratio (typ)	1000 : 1
Viewing angle (H/V)	160° x 160°
Active area (mm)	474 x 296
MTBF (hrs)	50,000
Signal input	DVI-D / VGA
Weight
Net / Gross	5 kgs ( 11 lbs ) / 10 kgs ( 22 lbs )
Mounting
Universal mount / VESA mount
Environmental
Operating	0 to 50°C Degree
Storage	-5 to 60°C Degree
Relative humidity	5~90%, non-condensing
Shock	10G acceleration (11 ms duration )
Vibration	5~500Hz 1G RMS random vibration
Casing Color
Dark grey ( RAL 7037 )
Regulatory
FCC, CE
Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 48 Watt, Standby 5 Watt
Dimensions
Product	571 x 58 x 377 mm / 22.5 x 2.3 x 14.9 inch
Packing	659 x 117 x 640 mm / 25.9 x 4.6 x 25.2 inch
