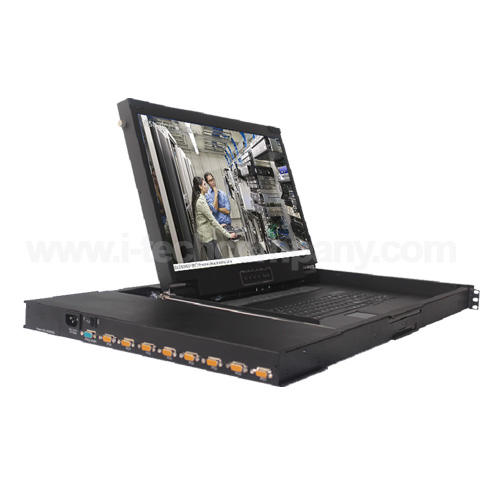

The console range of LCD console drawers provides a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades. The self‐locking rails when in the fully extended open position and the ultra convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation. Configure with 24 inch A‐Grade FHD LCD panels, combo DB15 single, 8 or 16 port integrated KVM switch & with an option remote IP console.

Features

• Support combo interface,VGA‐USB & VGA‐PS/2.
• Durable 104‐key keyboard and touch pad.
• Quick and simple installation.
• Self‐locking and auto release rails for ultra convenience.
• Port selection via push buttons or On‐Screen‐Display (OSD).
• Dedicated daisy chain port to expand up to 240 servers.
• Access Control List ( ACL ) security function for up to 8 independent user accounts.

Options

• An expansion slot allows you to add an optional KVM over IP module to enable remote access to your servers.
• Gain BIOS level access to your servers for system maintenance, support or failure recovery via secure SSL authentication and encryption.

Specifications

Direct no. of Computers		16
Maximum no. of Computers		240(Daisy chain)
LCD	Size	23.6”
	Backlight	LED
	Resolution	1920*1080 FULL HD
	Max.color	16.7M
	Luminance	250cd/m2
	View Angel (H/V)	178 / 178
	Contrast Ratio	3000 : 1
Port Selection		Push Button,OSD or Hotkey
Expansion Slot		Yes, option for Remote IP Access
KB/Mouse Emulation		USB & PS2
Rack Depth		500mm to 1100mm ( rack cabinet front rails to rear rails )
Power		100‐240V AC 50/60Hz via IEC Type power cord
Environment		Operation temp: 0 to 50℃ Storage temp: ‐20 to 60℃ Humidity: 10% ‐ 90%, non‐condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP
Physical Dimensions / Net Weights		448x42x775mm (WxHxD) / 15.5KG
Packing Dimensions / Gross weights		730*190*940mm (WxHxD) / 23KG
Accessory		1.8meter IEC Type Power Cord (1.8meter VGA& PS2Cable + 1.8meter USB A Type Cable for KVM‐1701/1901AST‐M6 )
