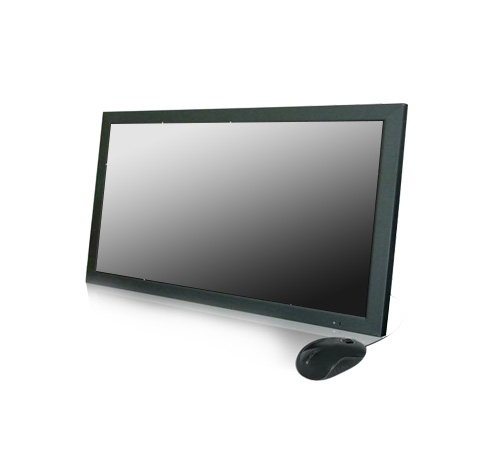

23.8" 32CH-IP Monitor (Full HD) 16:9; 1920x1080;250nit; 3000:1; LED Backlight; RJ45x2(10/100M); VGA*1;DVI-D*1;Full HD*1; Audio R/L*1;Mouse*1;Metal case;Bracket(max. 32ch IP CAMERA support) (Model: HIPW2380-32PoE)
23.8" 32CH-IP Monitor (Full HD) 16:9; 1920x1080;250nit; 3000:1; LED Backlight; RJ45x2(10/100M); VGA*1;DVI-D*1;Full HD*1; Audio R/L*1;Mouse*1;Metal case;Bracket(max. 32ch IP CAMERA support) (Model: HIPW2380-32PoE)
Main Feature
- 16 Channel IP Monitor LED Backlight
- Full HD Resolution
- Aluminum frame/ Metal case
- Support PoE
- Dual Strean Support
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| LCD Panel | 23.8" |
| Viewable area | 527.04 x 294.16 |
| Profile Ratio | 16 : 9 |
| Max. Resolution | 1920 x 1080 |
| Display Colors | 16.7M |
| Brightness | 250 cd/m2 |
| Contrast | 3000 : 1 |
| Response Time | 1.5/3.5 ms |
| View Angle | 89/89/89/89 |
| Full HD Input | 1xHDMI (Type A) |
| Audio Input(R/L) | 2xRCA |
| PC Input | 1xVGA Input/1xDVI Input |
| Earphone Out | 1xPhone Jack 3.5? |
| Speaker | 2xBuilt-in Speaker (2w) |
| IP Video Support | 32CH(2592x1944) / 25CH(2592x1944) 16CH(3840x2160) / 8CH(3840x2160) / 4CH(3840x2160) |
| Network Port | 2xRJ45,10/100M |
| USB Port | 2xUSB 2.0 ports |
| PoE Power Source | PoE RJ45 Ethernet Cable |
| PoE Input DC Range | 36VDC to 57 VDC(Complies with IEEE802.3at/4-Pairs) (Required PoE Device up to 40W) |
| Power Input(No PoE) | AC 100-240V 50/60Hz ,Adaptor DC 12V/5A |
| Power Consumption | Approx. 24 Watt |
| Housing | Metal Frame/ Casing |
| Dimension(mm) | 586 x 353.8 x 61.6 |
| Weight(kgs) | 5.8 kgs |
| Operating Temperature | 0 ~ 50°C |
