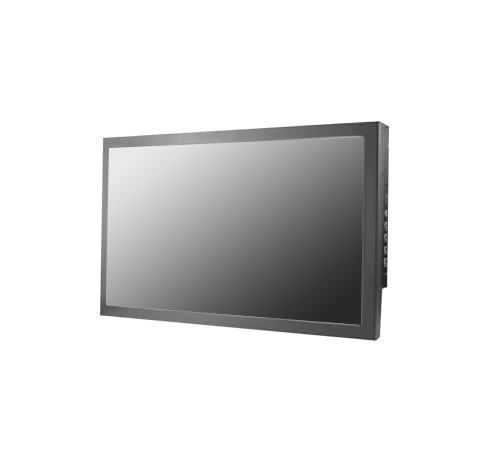

Chassis, w24"-1920x1200, LED-1000nits, VGA+DP+HDMI, Black Color, AC-IN, Power Cable: America (Model: ECHW2400HD-HB)

Chassis, w24"-1920x1200, LED-1000nits, VGA+DP+HDMI, Black Color, AC-IN, Power Cable: America

Overview
Specifications
Download

Welcome to i-Tech Company's page showcasing our 24-inch chassis LCD monitor, the ECHW2400HD-HB. Designed for industrial applications, this monitor offers cutting-edge features and customizable options to meet your diverse needs. Explore its modular mechanical design, optional touch screen functionality, and auto-brightness sensor, ensuring both flexibility and user convenience. With versatile connectivity options and tailored OEM solutions available, our monitor is the perfect choice for demanding environments where reliability and performance are paramount.

Features:

Incorporating modular mechanical design enhances product flexibility and simplifies maintenance procedures.
Add-on touch screen functionality is available for interactive applications, offering users an enhanced experience.
Equipped with an auto-brightness sensor, the device adapts seamlessly to both daytime and nighttime usage scenarios.
Featuring a VGA connector with the option for additional AV, SV, and AV-Looping capabilities, ensuring versatile connectivity.
Tailored custom design and solutions are offered to meet the unique requirements of OEM customers, providing comprehensive support.

Cell Type	TFT LCD
Glass Surface	Black Anti-Glare, low reflection coating
Aspect Ratio	Wide
Size	24.1" viewable diagonal area
Active Area	518.4(H) x 324.0(V) mm
Pixel Pitch	0.27(H) x 0.27(V) mm
Native Resolution	1920(H) x 1200(V)
Colors	16.7 M
Brightness	1000nits
Contrast	1000 : 1
Response Time	≤ 14 ms (G-to-G)
Viewing Angle (typical)	H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source	LED backlight, Long life, 35,000 hrs (typ)

INPUT SOURCES
PC System	Signal	Analog RGB (0.7/1.0 V, 75 ohms)
PC System	Sync	Separate Sync, Composite Sync, Sync On Green
	Frequency	F: 30 - 82Khz , F: 50 -75Hz
Audio System	2W speaker x 2

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA, 1 x DP, 1 x HDMI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
POWER CONSUMPTION
Operation / Power Saving	50 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity	-20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical
Carton	W x H x D = TBD
WEIGHT
N.W. / G.W.	12 Kgs/13.5 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)

TOUCH	VIDEO INPUT	ENHANCED PANEL	POWER	OTHERS
Resistive Touch	AV-IN	High Brightness Panel	24V DC-IN	Motion Sensor
Projected Capacitive Touch	AV Looping	Sunlight Readable	9~36V DC-IN	Light Sensor
Infrared Touch	HDMI / DP	Wide Viewing Angle	48V 72V DC-IN	VR-knob Dimming
Protected Glass	HD-SDI	Wide Temperature	90V 125V DC-IN	RS232 Remote On/Off
Optical Bonding		UV Film	110V 220V DC-IN	Military Connector: MIL 38999
		Anti-Vandal		Metal Connector: M12 / M16
				Stainless 316 Enclosure
