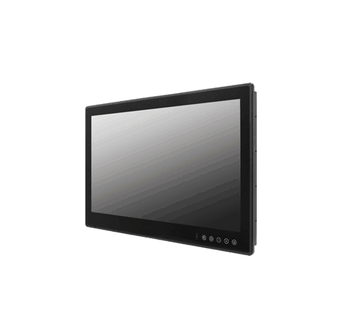

Rugged 24" Marine Panel Mount LCD Display IP65 w/ VGA, DVI-D, HDMI 1.4, RS232 for Remote Control (Model: WPM-MAR-W2400A1FV2)
Rugged 24" Marine Panel Mount LCD Display IP65 1920x1080, 300nits, 0-100% Dimming, wide Temp -15 to 55C and 24V DC, 1x VGA, 1x DVI-D, 1x HDMI 1.4, 1x RS232 for remote control
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| Welcome to the world of rugged marine-grade technology! At i-Tech Company, we're proud to introduce our 24-inch Marine Panel Mount LCD Display (IP65) - WPM-MAR-W2400A1FV2. Engineered to withstand the harshest marine environments, this display combines durability with high-performance features. Whether you're navigating the open seas or operating in coastal waters, trust our cutting-edge technology to deliver reliability and clarity when you need it most |
Features: |
|
| DISPLAY | |||
| Resolution | 1920x1080 | Size | 24 inches |
| Contrast Ratio | 5000:1 | Panel Brightness | 300 nits |
| View Angles | 89,89,89,89 | Active Area | 531.36x298.89 mm |
| Touch / Glass | AR Glass | Display Color | 16.7M Colors |
| ENVIRONMENT | |||
| Operating Humidity | 5% to 95% | Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration | Vibration | 0.7g@DNVGL CG-0339 (Class A) |
| IP rating | IP66 (Front Side) | ||
| Certification | |||
| Certification | CE, FCC, DNVGLCG0339, IEC60945 4th, IACS E10 | ||
| MECHANICAL | |||
| Physical Dimension | 595 x 385 x 73.8 mm 73.8mm Overall Depth (10mm front bezel+ 63.8mm) |
Enclosure | Anodized Aluminum Bezel |
| Mounting | VESA Mount/ Panel Mount | Cut out | 570 x 360 mm |
| Cooling System | Fanless Design | Weight | 10.3 kg |
| IO PORTS | |||
| USB Port | 1 x USB Type A | Serial Port | 1 x RS232 for remote control |
| Video | 1 x VGA 1 x DVID 1 x HDMI 1.4 |
Front Control | Power Brightness+ Brightness OSD/ Enter ECDIS Key/ ESC |
| Indicator | Day Mode Dusk Mode Night Mode |
Buzzer | 75 dB~80 dB, 2300 Hz, 1m |
| POWER | |||
| Power Rating | 24V DCin with Isolation (Approval by Certificate) 9~36V DC Input Acceptable |
Consumption | 45W (Typical) |
| ACCESSORIES | |||
| Accessories | User Manual, Mounting clips x12, AC to 12V DC Adapter, Power Cord, 3 Pin Terminal Block, Open Wire Cable 1x VGA cable, 1x DVI cable, 1x HDMI cable, 1x RS232 cable, 1x USB cable |
||
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
