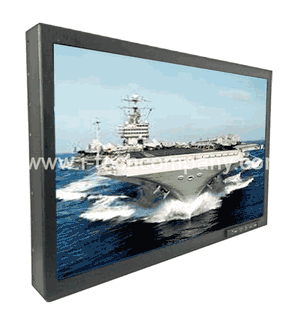

Rugged Military All Housing aluminum wide 24" 1920x1200 350nits resolution support Designed to meet MIL-STD-810G, MIL-STD-461F shock&vibration. (Model: EMilW2400-TR)
Rugged Military All Housing aluminum wide 24" 1920x1200 350nits resolution support Designed to meet MIL-STD-810G, MIL-STD-461F shock&vibration. (Model: EMilW2400-TR)
X
Inquiry/Quote Request
- Overview
- Download
Designed to meet the following:
Shock : Mil-S901D
EMI : Mil-STD-461E
Vibration : Mil-STD-167-1a, Type 1
Dimensions : (H)14.71" x (W) 22.01" (D) 3.82"
Wegiht : Less than 25 lbs
Shock : Mil-S901D
EMI : Mil-STD-461E
Vibration : Mil-STD-167-1a, Type 1
Dimensions : (H)14.71" x (W) 22.01" (D) 3.82"
Wegiht : Less than 25 lbs
| Display Features Overview | |
| Backlight | High bright LED / sunlight readable (optional) |
| Anti Reflective Coating | AR coating minimizes specular reflections |
| Mount | CEDS console compatible mounting / rear VESA mount avail with bracket |
| Auto Position / Settings | Auto position resolution scaler |
| RoHS | Lead free RoHS compliant (optional) |
| Cooling | Natural Convection / Fan |
Specifications:
| Display Characteristics | |||
| Display Size | 611 mm diagonal | ||
| Resolution | 1920 X 1200 colored pixels | ||
| Colors | 16.7 million | ||
| Active Area | (H)324.0mm x (W)518.4mm | ||
| Pixel Pitch | 0.270mm(H) x 0.270mm(V) | ||
| Brightness | 350 cd/m^2 | ||
| Viewing Angle | Vertical: +/- 89 deg Horizontal: +/- 89 deg |
||
| Contrast Ratio | 1000:1 Typical | ||
| Response Time | 6.5ms | ||
| Sync Range | Horizontal: 30 kHz to 82 kHz | ||
| Video non-interlaced | Min refresh rate 60 Hz / 72 Hz | ||
| Controls | Front controlled with full dimming capabilities | ||
| Power Input | 85-264 VAC 47 TO 63 Hz : 12 & 24VDC | ||
| Power Consumption | Less than 75 watts | ||
| Data Inputs | |||
| VGA | (x1) D-sub | ||
| NTSC | Optional BNC input | ||
| BNC | 5-Wire RGBHV sync | ||
| DVI-D | (x1) Dvi-D input | ||
| Mechanical Characteristics | |||
| Bezel Dimensions | Outer dimensions (H)14.71” x (W) 22.01” (over all depth) 3.82” | ||
| Weight | Less than 25 Lbs | ||
| Cooling | Natural convection / fan | ||
| Environmental Characteristics (designed to) | |||
| Shock | Mil-S-901D, Grade A, Class1 Type A Mil-STD-810E |
Vibration | Mil-STD-167-1a, Type 1 |
| EMI | Mil-STD-461E | Drip Proof | Mil-STD-810E |
| Sand & Dust | Mil-STD-810E | Operating temp |
-25 to 55 C |
| Non-operating temp | -40 to 70C | ||
| LCD Options | |||
| NVIS | Compatible backlight systems | High Altitude | Explosive Atmosphere compatible |
| LED | Optional LED high bright backlight | Touch Screen | Acoustic, Capacitive, Resistive. USB or rs232 |
| Low/High Temp | -40 to 60C operating | X-term | Integrated Pentium based |
