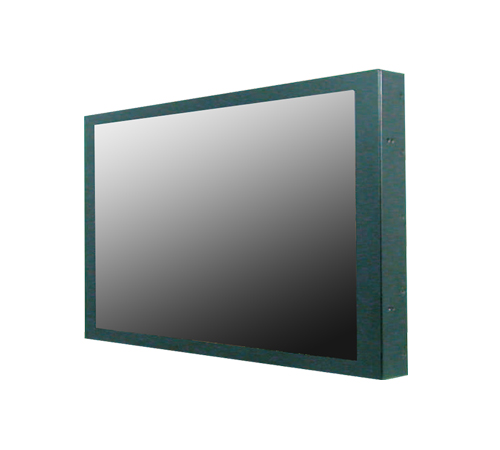

24" Wide LCD Monitor Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O, 1920x1080, 300 nits VGA + DVI Input Rear OSD (Model: CCHW2400IP)

24" Wide LCD Monitor Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O, 1920x1080, 300 nits VGA + DVI Input Rear OSD (Model: CCHW2400IP)

24" Wide LCD Monitor Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O, 1920x1080, 300 nits VGA + DVI Input Rear OSD (Model: CCHW2400IP)

Main Feature

    • High Contrast color TFT LCD Monitor support resolution up to FULL HD (1280 x 1080)
    • Power management system conforms to VESA DPMS and EPA Energy Star standards.
    • Full consideration for touch screen installation and application.
    • Universal Power adapter.
    • Support DDC1 & DDC2B for Plug & Play compatibility.
    • Advanced OSD control for picture quality adjustment.
Inquiry/Quote Request
CCHW2400IP
  • Overview
  • Specifications
  • Download
  • Contact Sales

Rugged IP65/NEMA4X Industrial touch screen monitor, iTech is the perfect solution for Dusty and Wet industrial environments. Heavy duty Metal housing with powder coating and affordable.

  • • High Contrast color TFT LCD Monitor support resolution up to FULL HD (1280 x 1080)
  • • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • • Full consideration for touch screen installation and application.
  • • Universal Power adapter.
  • • Support DDC1 & DDC2B for Plug & Play compatibility.
  • • Advanced OSD control for picture quality adjustment.
  • • Detachable stand for wall-mounting application.
  • • Heavy duty Monitor with steel frame.
  • • Front IP64/NEMA4X Optional with PCAP or 5 Wire Resistive Touch Screen Options
  • • IP65 Solid Back housing except I/O and VESA mounting
  • • Custom design by request.
Display Viewing Size Image 24"
Active Display Area (mm) 531.36 (H) x 298.89 (V)
Pixel Pitch (mm) 0.27675 (H) x 0.27675(V)
Resolution 1920 x 1080
Contrast Ratio 3000: 1 (typ.)
Color 16.7M(8bits+color)
Brightness 300 cd/?
Viewing Angle -89~89 (H) ; -89~89 (V)
Recommended Resolution 1920 x 1080 @ 60Hz
Signal Connector VGA,DVI
Power Source 12V DC in,with External AC-DC Adapter(100-240V)
Consumption 45W typical, normal operation
Management VESA DPMS Compliant
Optional Touch Resistive, PCAP ,IR
High Brightness YES
Auto Dimming YES
POWER in DC24V,DC9V~36V
Remote Control YES

IO		 Video: VGA + DVI
Power: 12 VDC External power supply 100-240 VAC 50-60Hz included
