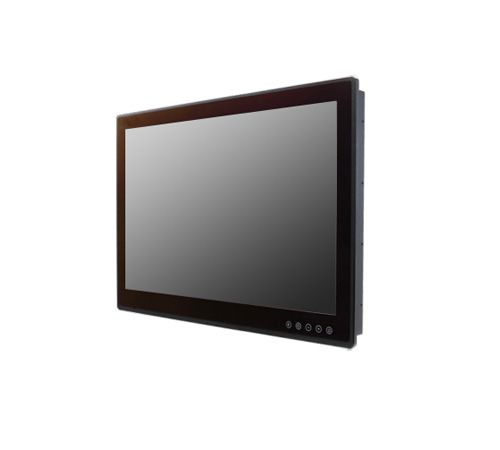

26" 350nits Rugged Marine Panel PC IP66 w/ Multi-touch Projective Capacitive, ECDIS Mode Switching (Model: WPM-MAR-W2600A1F-i5)

Rugged 26" Marine Panel Mount PC IP66 1920x1200, 350nits with Multi-touch Projective capacitive, ECDIS Mode Switching: DAY, DUSK, NIGHT Modes, IEC60945 4th Edition, DNVGLCG0339, IACS E10, Edge-to-edge Narrow Bezel

Rugged 26" Marine Panel Mount PC IP66 1920x1200, 350nits with Multi-touch Projective capacitive, ECDIS Mode Switching: DAY, DUSK, NIGHT Modes, IEC60945 4th Edition, DNVGLCG0339, IACS E10, Edge-to-edge Narrow Bezel

Inquiry/Quote Request
WPM-MAR-W2600A1F-i5
  • Overview
  • Specifications
  • Download
Introducing the 26-inch Rugged Marine Panel Mount PC, engineered for the toughest maritime environments. This IP66-rated panel mount PC boasts a 350 nits display, providing clear visibility even in bright conditions. Powered by an Intel i5 processor, it delivers reliable performance and exceptional durability, making it the perfect solution for demanding naval and offshore applications. Whether you're navigating the open seas or working in a shipyard, this marine-grade PC is designed to withstand the rigors of the ocean while ensuring seamless operation.


Features:
  • 27" High-Resolution Touchscreen with 1920x1200 Pixels
  • Featuring an ultra-thin bezel and fanless design, this Flat PCAP Marine Panel PC provides a seamless viewing experience.
  • Optionally color-calibrated for ECDIS standards.
  • Equipped with capacitive touch buttons for swift function access and display adjustments.
  • Supports DAY, DUSK, and NIGHT mode transitions for ECDIS operations.
  • Optional 4 x COM ports with NMEA 0183 compatibility, switchable between 422/485 through software.
  • Built to adhere to marine industry regulations, including IEC60945 4th Edition, DNVGLCG0339, and IACS E10.
  • Includes lock features for both capacitive touch buttons and the touchscreen.
DISPLAY
Resolution 1920x1200 Size 26.0 inches
Contrast Ratio 1500:1 Panel Brightness 350 nits
View Angles 88,88,88,88 Active Area 550.08x343.8 mm
Touch / Glass PCAPMulti Touch Screen (AR Film), AG film (Optional), AR Glass (Optional)
SYSTEM SPECIFICATIONS
Processor Intel Broadwell Core i5-5200U / -5300U / -5350U 2.1GHz Memory 1 x SODIMM, DDR3L 1600 MHz, 8GB
Storage 1 x mSATA SSD 128GB Ethernet controller Intel® Ethernet Controller I211AT+
Intel® Ethernet Connection I218LM
Operating System Windows 11 IoT Enterprise LTSC (64 bit) Buzzer 75 dB~80 dB, 2300 Hz, 1m

ENVIRONMENT
Operating Humidity 5% to 95% Operating Temperature -15~55°C
Shock 15G,11ms duration Vibration 0.7g@DNVGL CG-0339 (Class A)
IP rating IP66 (Front Side)
CERTIFICATION
Certification CE, FCC, DNVGL­CG­0339, IEC60945 4th, IACS E10
MECHANICAL
Dimension 621 x 432.4 x 85.5 mm Enclosure Anodized Aluminum Bezel
Mounting VESA Mount/ Panel Mount Cut out 596 x 406 mm
Cooling System Fanless Design Weight 12.8 kg
IO PORTS
USB Port 2 x USB3.0
1 x USB2.0		 Serial Port 1 x RS232(Default)/422/485
Video 1 x HDMI (Optional) LAN 2 x RJ45
Front Control Power
Brightness +
Brightness Menu
Function Key(Default setting: ECDIS Mode) 		Indicator Day Mode
Dusk Mode
Night Mode
DIDO 8 Channel Isolated Digital Input/Output (Optional) NMEA 4 x NMEA 0183 Port (Optional)
POWER
Power Rating 24V DC­in with Isolation (Approval by Certificate)
9~36V DC Input Acceptable 		Consumption 75W (Typical)
ACCESSORIES
Accessories Driver CD & User Manual 12V AC to DC Adapter (with 3 pin Terminal Block) Power Cord M4 x 12 Black Screw Bolts Optional Accessory Four 5 Pin Terminal Block 3.81 (Phoenix Type)*For NMEA port (Optional)
