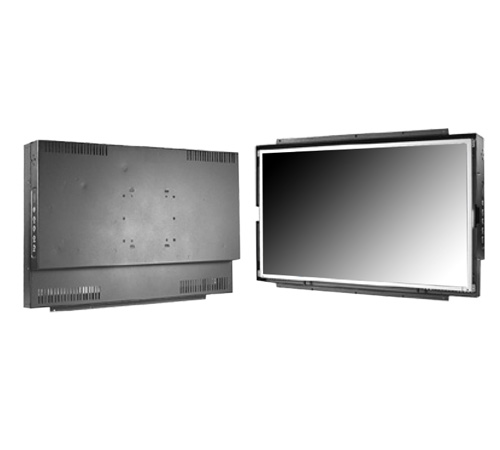

27" Open Frame LCD monitor, 2560x1440 LED-350nits, VGA+HDMI+DP, AC-IN w/Built-in PWR (Model: EOPW2700-2K)
27" Open Frame LCD monitor, 2560x1440 LED-350nits, VGA+HDMI+DP, AC-IN w/Built-in PWR (Model: EOPW2700-2K)
Main Feature
- High 2K resolution provides an exceptional experience regardless of any application
- Modular construction for more flexibility in terms of product configuration as well easy maintenance
- A brightness sensor for auto adjustment of the screen so that it’s neither too bright nor too dark
- Robust aluminum housing to withstand rugged applications
- Optional build-in touch screen functionality for an interactive application
- Optional protective glass to keep dust, dirt, and moisture away from the display
- Standard VGA connector but also available with optional AV, SV, and AV-Looping
- Energy-efficient based on advance power management
- Customizable design available upon request for Open frame/Panel mount/Stainless steel OEM customers
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| Panel | Cell Type / Glass Surface | TFT LCD / Black Anti-Glare, low reflection coating | |
| Aspect Ratio / Size | Wide / 27" viewable diagonal area | ||
| Active Area / Pixel Pitch | 597.89(H) x 336.31(V) mm / 0.3114(H) x 0.3114(V) mm | ||
| Native Resolution / Colors | 2560(H) x 1440(V) / 16.7M | ||
| Brightness / Contrast | 350 cd/m2 (typ) / 1000 : 1 | ||
| Response Time | < 6 ms (G-to-G) | ||
| Viewing Angle (typical) | H.178° (-89° ~ + 89°) , V. 178°(-89° ~ +89°) | ||
| Light Source | LED backlight, Long life, 35,000 hrs (typ) | ||
| Input Sources | PC System | Signal | Analog RGB (0.7/1.0 Vp-p, 75 ohms) |
| Sync | Separate Sync, Composite Sync, Sync On Green | ||
| Frequency | Fh : 30 - 82Khz , Fv : 50 -75Hz | ||
| Audio System | N / A | ||
| Input Terminals | 1 x VGA , 5 x HDMI, 1 x DP, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug | ||
| Convenient Features | Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) | ||
| OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) | |||
| Power | Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz | ||
| Power Consumption | Operation / Power Saving | 42.5 watt , < 1 watt (Support DPMS) | |
| Operating Condition | Temperature / Humidity | 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation) | |
| Storage Condition | Temperature / Humidity | - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation) | |
| Certification | FCC , CE | ||
| Dimensions | Physical | Please refer to Drawing | |
| Carton | W x H x D = TBD | ||
| Weight | N.W. / G.W. | 12 Kgs / 13.5 Kgs | |
| Container Loaded | 20ft / 40ft / 40ft HQ | TBD (Sets , By pallet) | |
Options:
- Touch: Resistive touch, Capacitive, SAW, Infrared, and Protected glass
- Video/TV: SV + AV, SV + AV + AV_Looping, SV + AV + TV
- Enhanced Panel: Panel with LED backlight, High brightness panel, Wide Temperature, Sunlight Readable
- Others optional features: Digital Signage (Standalone), Networking Digital Signage, Motion Sensor, Light Sensor, Auto-Dimming
