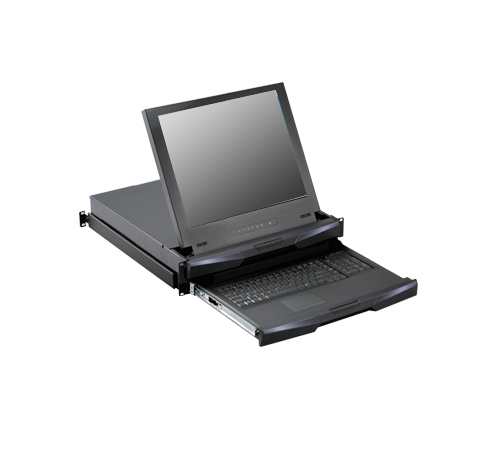

2U 17" Short-Depth Rackmount LCD USB KB w/ 8-Ports USB KVM, Notebook KB w/ Touchpad, 19" Deep (Model: NVP2417-S801e)

2U 17" Short-Depth Rackmount LCD USB Keyboard w/ 8-port USB KVM, Notebook Keyboard w/ touchpad (Includes 8 pcs 6ft long KVM NB-6 USB KVM Cables) 19" Deep

2U 17" Short-Depth Rackmount LCD USB Keyboard w/ 8-port USB KVM, Notebook Keyboard w/ touchpad (Includes 8 pcs 6ft long KVM NB-6 USB KVM Cables) 19" Deep

Inquiry/Quote Request
NVP2417-S801e
  • Overview
  • Specifications
  • Download
Welcome to the forefront of efficient rackmount technology with the NVP2417-S801e. This innovative 2U 17-inch short depth rackmount LCD combines sleek design with unparalleled functionality, offering a comprehensive solution tailored to modern server environments. With integrated USB KVM featuring 8 ports, this console streamlines your operations, maximizing both space and productivity within your rack infrastructure. Join us as we delve into the features and benefits of this cutting-edge device, designed to elevate your server management experience to new heights.


Features:
  • 17" LCD Console Drawer with 2U design
  • Dual Slide Functionality: LCD and keyboard slide independently
  • Native Resolution: 1280 x 1024 with support for 16.7 million colors
  • Keyboard: 104-key layout with a choice of touchpad or trackball
  • Compact Design: Short depth of 480mm
  • Easy Installation: Designed for one-person installation
  • Enhanced Aesthetics: Features molded front handle and two-point lock for added style and security
  • Warranty: Standard 2-year warranty, with option to upgrade to 5 years


Options:
  • HDMI 1.4 + DVI-D + Audio in & out + Speakers ( AV4.4 )
  • HDMI 1.4 + Speakers ( HDMI )
  • S-Video + Composite + Speakers ( BNC )
  • 3G / HD / SD-SDI Broadcast-grade input + Speakers ( SDI )
  • DC power : 12V / 24V / 48V / 125V / 250V
  • SUN Micro keyboard option
  • 17" Touchscreen :
    Projected Capacitive 10-pt / Resistive 1-pt
LCD Panel
Panel size ( diagonal ) 17"
Native resolution 1280 x 1024
Brightness ( cd/m² ) 250
Contrast ratio ( typ. ) 1000 : 1
Colors 16.7 M
Viewing angle ( L/R/U/D ) 85/85/80/80
Response time ( ms ) 5
Dot pitch ( mm ) 0.264
Display area ( mm ) 337.92H x 270.33V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
Backlight type LED
MTBF (hrs) 30,000

Physical
Product  ( W x D x H )  Console w/ KVM 442 x 480 x 88 mm
17.4 x 18.9 x 3.5 inch
Packing ( W x D x H ) Console w/ KVM 585 x 620 x 190 mm
23 x 24.4 x 7.5 inch
Net weight Console w/ KVM 21.1 kg / 46.4 lb
Gross weight Console w/ KVM 27 kg / 59.4 lb

Mounting Distance
Console w/ KVM drawer 490 ~ 700 mm
19.3 ~ 27.6 inch

Environment
Operating temp. 0 to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 10~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration

Compliance
EMC FCC, CE
Safety CE / LVD & UKCA
Environment RoHS3 & REACH / WEEE


KVM Specifications:
KVM Port
Number of ports : 8
Connector : DB-15 combo connector
Connectivity : USB 2-in-1 KVM cable, up to 6, 10 & 15 feet
Local Console : Nil for LCD console drawer version
Management
Multilingual OSD : English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hotkey combination : Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Security : Password enable & disable, up to 8 users profile for port access
PC Selection : Front button, OSD menu & hotkey
Expansion: Up to 128 servers by 8-level cascade
Compatibility
Hardware : HP    / IBM / Dell PC, Server and Blade Server SUN / Mac
OS Support : Windows / Linux / Unix / Mac OS
Power
Input : Auto sensing 100 to 240VAC, 50 / 60 Hz
Option DC : 12V / 24V / 48V / 125V DC input
Consumption : Max. 11W
Compliance
EMC : FCC & CE
Safety : CE / LVD & UKCA
Environment : RoHS3 & REACH / WEEE
Environmental Operating                                  Storage / Non-operating
Temperature : 0 to 55°C degree                     -20 to 60°C degree
Humidity : 10~90%, non-condensing        5~90%, non-condensing
Altitude : 16,000 ft                                  40,000 ft
Shock : -          10G acceleration (11ms duration)
Vibration : -          10~300Hz 0.5G RMS random vibration
