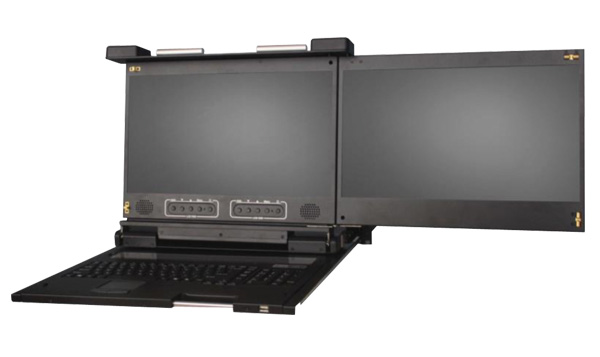

Dual Slides 2U 17.3" 1920 x 1200 widescreen Dual LCD Rackmount LCD Keyboard Console Drawer (Model: ASKD2D1730)

Dual Slides 2U 17.3" 1920 x 1200 widescreen Dual LCD Rackmount LCD Keyboard Console Drawer, 2 x DVI & VGA Port, 104-key keyboard with touch pad mouse Self-locking and auto release rails for ultra convenience and built in speakers, 580mm. 22.8" deep. (Model: ASKD2D1730)

Dual Slides 2U 17.3" 1920 x 1200 widescreen Dual LCD Rackmount LCD Keyboard Console Drawer, 2 x DVI & VGA Port, 104-key keyboard with touch pad mouse Self-locking and auto release rails for ultra convenience and built in speakers, 580mm. 22.8" deep. (Model: ASKD2D1730)

Main Feature

  • 2U Dual 17.3 inch widescreen LCD Console Drawer
  • Dual-rail console design enables the LCD display and keyboard tray to be operated independently
  • Ultra high resolution
  • Integrated 104-key keyboard with touchpad
  • Multi input such as DVI, VGA, Audio, USB hub
  • Supports USB 2.0 keyboard and mouse
  • Build in 2x 2-watt speakers
  • Optional composite video input
  • Optional HDMI or Display Port input
  • Optional 3G / HD / SD – SDI Broadcast grade input
Inquiry/Quote Request
ASKD2D1730
  • Overview
  • Specifications
  • Download
  • Contact Sales

The ASKD2D1730 Dual 17.3 inch widescreen LCD Console Drawer offers an ultra-high resolution display with integrated keyboard and touchpad console. It is an ideal solution to manage and monitor your server or KVM switch using 2U of rack space.

No. of ports 1
KVM Connectors 2 x DVI-D & 2x VGA / 1 x USB for KB & Mouse / 1x Audio




LCD 		Size Dual 17.3 inch FULL HD display
Backlight LED
Resolution 1920*1080 ( support resolution up to 1920*1200 )
Max.color 262K
Luminance 300 cd/m2
View Angel (H/V) 140 / 120
Contrast Ratio 650 : 1
Port Selection N/A
USB HUB Yes , Front x1 & Rear x 2 USB 2.0 Type A for USB Peripheral Device
Audio 1 x 3.5mm Audio jack
KB/Mouse Emulation USB 2.0
Rack Depth ( rack cabinet front rails to rear rails ) 580mm to 950mm
Power 100-240V AC 50/60Hz via IEC Type power cord
Environment Operation temp: 0 to 50°C
Storage temp: -20 to 60°C
Humidity: 10% - 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions ( W x H x D ) / Net Weights ( KGs ) 482x67x580mm / 14.5
Packing Dimensions ( W x H x D ) / Gross weights ( KGs ) 735x590x215mm / 19.0
