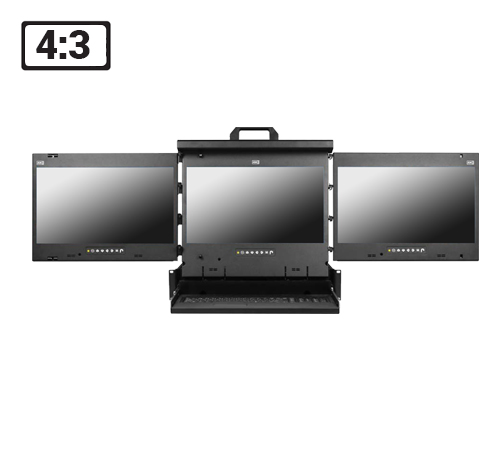

2U 4:3 19" Triple Rackmount Keyboard LCD Monitor Console Drawer (Model: NVP3D19e)
2U 4:3 19" Triple Rackmount Keyboard LCD Monitor Console Drawer (Model: NVP3D19e)
Main Feature
- 2U 22" short depth design
- Light weight only 46.2 lbs / 21 kgs
- Rugged construction for mobility & durability
- Built-in solid bearing slide rails
- Built-in dual stereo speaker ( per display )
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
- Contact Sales
The NVP3D 2U dual or triple display console drawer is designed for Command and Control Systems which demand quick deployment of side by side displays. 2U 22" depth platform allows for small size and transit case portability. To ensure chassis ruggedness, mobility and quality, as well as being suitable for harsh environment applications, the NVP3D drawer is meticulously constructed by a team of experts in our own CNC facilities for such applications. The key benefit of the NVP3D series is the choice of different resolution panels including 4K 17", WUXGA 16.2", FHD 17" 60Hz, FHD 17" 144Hz, 19" 4:3 LED backlit displays. Sunlight Readable FHD 17" LCD is also available. 4K 17" displays satisfy the increasing demands for higher graphical and text requirements. A solid 104 key keyboard is integrated with either touchpad or trackball. |
Features: |
|
Options: |
|
| LCD Panel | NVP(x)D19e |
| Native resolution | 1280 x 1024 |
| Panel size (diagonal) | 19" |
| Refresh rate (Hz) | 60 / 75 |
| Standard Brightness (cd/m˛) | 250 |
| High Brightness (cd/m˛) - Option | 1000 |
| Contrast ratio (typ.) | 1000 : 1 |
| Colors | 16.7 M |
| Viewing angle (L/R/U/D) | 85/85/80/80 |
| Response time (ms) | 5 |
| Dot pitch (mm) | 0.294 |
| Display area (mm) | 337.92H x 270.33V |
| Surface treatment | Haze 25%, Hard-coating |
| Surface hardness | 3H |
| Backlight type | LED |
| MTBF (hrs) | 20,000 |
| Video | NVP(x)D19e |
| Package | DVI-D + VGA |
| Option | HDMI 1.2 / HDCP 1.1 |
Capacitive Touch screen Option
| NVP(x)D19e | |
| Technology | Capacitive |
| Touch Point | Single |
| Input Type | Finger |
| Resolution | 2048 x 2048 |
| Touch Point Accuracy | - |
| Response Speed | 20 ms |
| Activation Force | < 50 g |
| Surface Hardness | 9H |
| Light Transmission | 92% ± 2% |
| Haze | 7% |
| Durability | 300 million touches |
| Top Layer | Glass |
| Bottom Layer | |
| Thickness | 2.8 mm ± 10% |
| Connector | USB Type A |
| Compatibility | Windows 7 / XP / Linux / Mac |
Resistive Touch screen Option
| NVP(x)D19e | |
| Technology | 5-Wire Resistive |
| Touch Point | Single |
| Input Type | Finger or Stylus |
| Resolution | 2048 x 2048 |
| Response Speed | 15 ms |
| Activation Force | < 50 g |
| Surface Hardness | 3H |
| Light Transmission | 80% ± 3% |
| Haze | 8% ± 3% |
| Durability | 10 million touches |
| Top Layer | ITO Film |
| Bottom Layer | ITO Glass |
| Thickness | 2.2 ± 0.2 mm |
| Connector | USB Type A |
| Compatibility | Windows 7 / XP / Linux / Mac |
| Power | NVP(x)D19e | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | |
| Consumption per panel | Screen on | Max. 25W |
| Power saving | Max. 4W | |
| Power button off | Max. 1W |
| Physical | |||
| Product (W x D x H) | NVP(x)D19e | mm | 441.6 x 600 x 88 |
| inch | 22.8 x 23.6 x 7.8 | ||
| Packing (W x D x H) | mm | 580 x 683 x 197 | |
| inch | 22.8 x 26.9 x 7.8 | ||
| Net Weight | NVP(x)D19e | Triple display | 26.7 kg / 58.7 lb |
| Dual display | 22 kg / 48.4 lb | ||
| Gross | NVP(x)D19e | Triple display | 32.1 kg / 70.6 lb |
| Weight | Dual display | 27 kg / 59.4 lb | |
| Chassis color | Dark | ||
| Chassis materials | Steel | ||
| Compliance | |
| EMC | FCC & CE certified |
| Safety | CE / LVD certified |
| Environment | RoHS2 & REACH compliant |
| Environment | |
| Operating temp. | 0 to 55°C degree |
| Storage temp. | -20 to 60°C degree |
| Operating humidity | 20~90%, non-condensing |
| Storage humidity | 5 ~90%, non-condensing |
| Operating altitude | 16,000 ft |
| Non-operating altitude | 40,000 ft |
| Shock | 10G acceleration ( 11ms duration ) |
| Vibration | 10~300Hz 0.5G RMS random vibration |
