Standalone 21.5" 1920x1080, 1000nits Wide Dual LCD with VESA Only, DVI+VGA+HDMI (Model: ARP2D2150HB-V1)

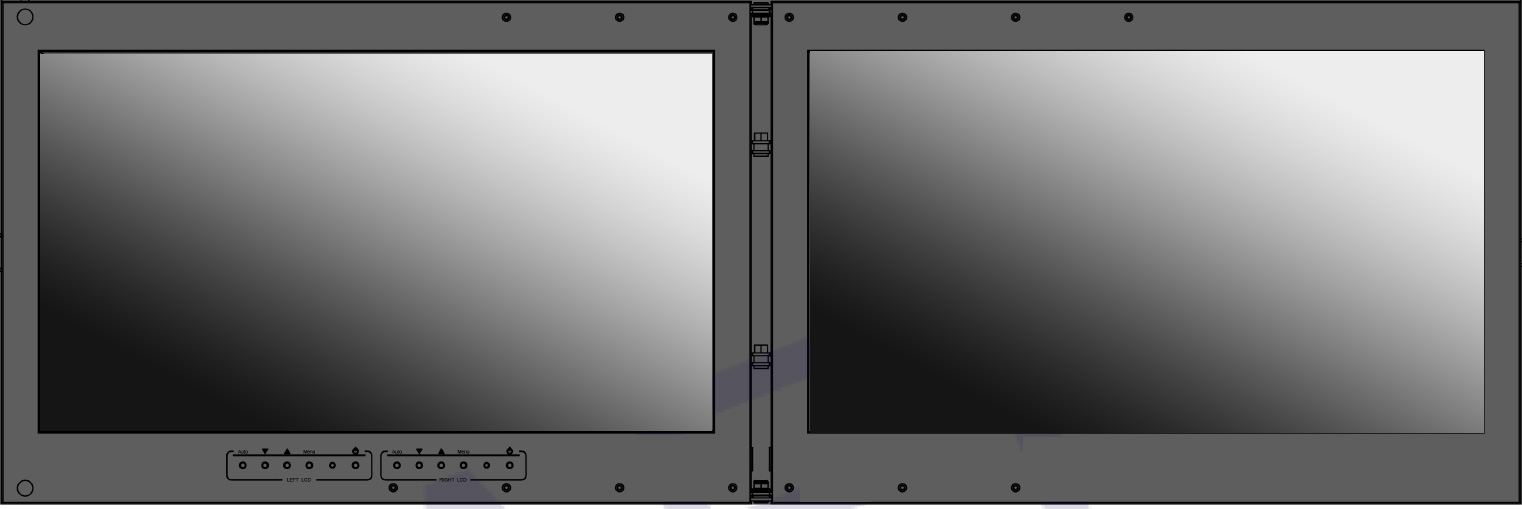

Standalone 21.5" 1920 x 1080 1000nits widescreen Dual LCD with VESA Only, DVI+VGA+HDMI on each screen, VESA mounting on center screen, Center and right swing.
ARP2D2150HB-V1
- Overview
- Specifications
- Download
| LCD Characteristics : |
| Screen Size |
Dual 21.5" |
| Backlight Type |
LED |
| Resolution |
1920x1080 |
| Contrast Ratio |
400:1 |
| Brightness ( cd/m2 ) |
1000 |
| View Angles ( H/V ) |
140/120 |
| Pixel Size ( HxV ) mm |
0.1989x0.1989 |
| Max. Color |
262K |
| MTBF ( Hrs. ) |
10,000 |
|
| |
| Input Signals: |
| DVI-D |
Dual DVI-D 24Pin Connector (Female) |
| VGA |
Dual D-SUB 15Pin Connector (Female) |
| HDMI |
x1 |
| Audio |
1x 3.5" Jack |
| Power Input |
Standard IEC Inlet |
| Touch-USB ( option ) |
Dual USB A Type connector |
| Touch-RS232 ( option ) |
Dual D-SUB 9P connector ( Female ) |
|
| |
| Power Specifications : |
| AC Power Input |
Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input |
| Wide Range DC Power Input ( option ) |
Screw Type Terminal Block with internal wide Range DC 9-36V power module |
|
| |
| User Controls Interface: |
| Power ON / OFF via Front Button |
| Power Mode Status LED indicator |
| OSD ( On Screen Display ) Buttons |
|
| |
| Mechanical and Environment: |
| Construction |
Metal Housing |
| Operating Temperature |
0 - 50 deg. C |
| Operating Humidity |
5% - 95% ( non -condensing ) |
| Anti-Vibration |
5 - 500 Hz / 1 Grms PTP |
| Anti-Shock |
15G / Peak ( 11 ms ) |
| Physical Dimension (WxHxD) |
W x H x D = TBD |
| Packing Dimension (WxHxD) |
W x H x D = TBD |
| Net Weight / Gross Weight |
TBD |
| Certification and Approvals |
CE / FCC / RoHs |
|
