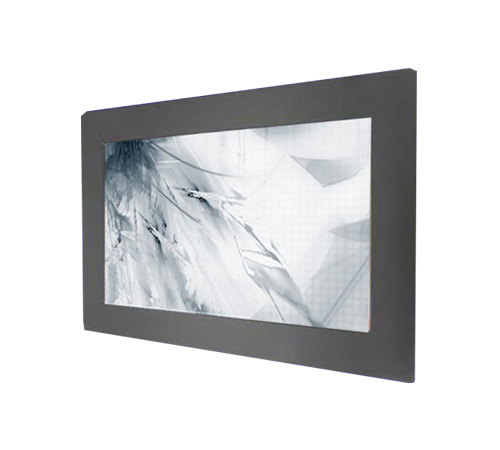

32" Panel Mount IP65 Front 1000nits LED Backlight, VGA+DVI+HDMI w/ Optical Bonding w/ AR 3mm Glass (Model: YPMW3200PHBOB-SW01)
Industrial Panel Mount IP65 Front Black Color Powder Coating Metal Housing High Brightness 32" LCD 1920*1080,1000nits LED Backlight Contrast Ratio 3000:1 10/220V AC, Operating Temp 32°F to 122°F (0°C to 50°C) + VGA+DVI+HDMI Input + Integrated Optical Bonding with AR 3mm glass
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
Product discontinues YPMW3200PHBOB-SW01 version is EOL, new version is YPMW3200PHBOB-SW01-V2
- High Contrast Color TFT-LCD Monitor Support Resolution up to 1920 x 1080.
- Light Sensor at front bezel top middle
- VGA + DVI + HDMI input
- Auto power and signal on/off
- One(1) Year Return to Depot Warranty
- Life time 60K hours, Operating Time 24 hours/Per day (Moving Pictures)
- One(1) Year Return to Depot Warranty
| ITEM | SPECIFICATION |
| Panel Type | 32.0-inch TFT LCD |
| Screen Diagonal | 32.0-inch |
| Active Display Area (mm) | 698.4 (H) x 392.85(V) |
| Pixel Pitch (um) | 0.3637 (H) x 0.3637 (W) |
| Number of Pixels | 1,920x1,080 |
| Contrast Ratio | 3000:1 |
| Color Arrangement | R.G.B. Vertical Stripe |
| Brightness (cd/m˛) | 1000 cd/m˛ |
| Viewing Angle(Typ.) | 89/89/89/89 (R/L/U/D) |
| Signal Connector | VGA, DVI, HDMI |
| Power Source | 110/220V AC, Universal +/- 10% |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | 4F ~ 140F (-20C ~ 60C) |
| Plug & Play | VESA DDC 1/2B |
| Anti Shock 30G | |
| Anti Vibration 1G (2-200Hz) | |
