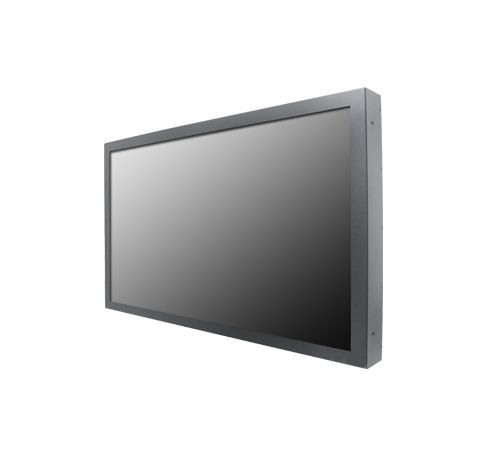

32" Chassis Mount LCD AR Glass / Front IP65 VGA, Composite BNC, 24VDC w/ Terminal Block (Model: WCHSD3200A1-BNC)
Front IP65 Chassis/Wall Mount Industrial LCD 32" Chassis Mount LCD 1920x1080 with AR Glass / Front IP65 VGA, Composite BNC Connector and 24VDC with Terminal Block
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The WCHSD3200A1 is a robust 32-inch chassis mount LCD designed for industrial applications. Featuring an AR glass front and an IP65 rating, this display is built to withstand harsh environments while providing excellent visibility and protection against dust and water. With versatile connectivity options, including BNC input, the WCHSD3200A1 is ideal for various professional settings where durability and high performance are crucial. Whether for use in factory automation, transportation, or other demanding environments, this display delivers reliable and clear visuals. |
Features: |
|
| Display | Viewing Size Image | 32" |
| Active Display Area (mm) | 700.60 (H) x 395.30 (V) | |
| Pixel Pitch (mm) | 0.3638(H)x 0.3638(V) | |
| Resolution | 1920x1080 | |
| Contrast Ratio | 3000: 1(typ.) | |
| Color | 16.7 M(8bits+colors) | |
| Brightness | 350 nits | |
| Viewing Angle | -89~89 (H) ; -89~89 (V) | |
| Recommended Resolution | 1920 x 1080 @ 60Hz | |
| Signal Connector | VGA, Composite BNC Connector | |
| Operating Temp | 0°C ~ 50°C | |
Power |
Source | 24VDC with Terminal Block |
| Management | VESA DPMS Compliant | |
| Options | High Brightness | 1000 |
| Auto Dimming | YES | |
| POWER | 100-240V AC | |
| Remote Control | YES | |
| IO | AV, DP |
