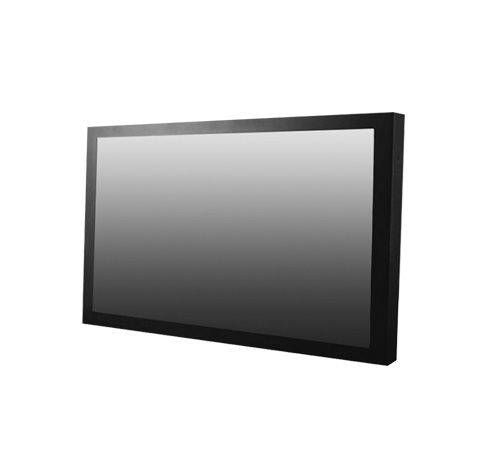

32" Chassis Touch LCD Monitor 2500nits w/ VGA/DVI/HDMI, 2W Speakers x2, AG PCAP Touch w/ USB (Model: YCHW3200HB3-PCAP)

32" Chassis Touch LCD Monitor / 1920x1080 / 2500nits LED / High Tni Liquid Crystal (-40~110C) / -20~60C / VGA+DVI+HDMI Signal input / 2W Speaker x2 / AG Coating PCAP Touchscreen with USB controller

32" Chassis Touch LCD Monitor / 1920x1080 / 2500nits LED / High Tni Liquid Crystal (-40~110C) / -20~60C / VGA+DVI+HDMI Signal input / 2W Speaker x2 / AG Coating PCAP Touchscreen with USB controller

Inquiry/Quote Request
YCHW3200HB3-PCAP
  • Overview
  • Specifications
  • Download
Discover the 32" High Brightness Chassis Touch LCD Monitor, designed for demanding environments. Featuring a stunning 1920x1080 resolution and an ultra-bright 2500 nits LED display, this monitor ensures clear visibility even in direct sunlight. Built with High Tni liquid crystal, it operates reliably in extreme temperatures from -40°C to 110°C, while its robust chassis supports temperatures from -20°C to 60°C. Equipped with VGA, DVI, and HDMI inputs, dual 2W speakers, and an AG PCAP touchscreen with a USB controller, this monitor combines superior performance with rugged durability, making it perfect for industrial and high-brightness applications.


Features:
  • Screen Size: 32 inches
  • Resolution: 1920x1080 Full HD
  • Brightness: 2500 nits LED backlight
  • High Tni Liquid Crystal: Operates in a temperature range of -40°C to 110°C
  • Operating Temperature: -20°C to 60°C
  • Signal Inputs: VGA, DVI, and HDMI
  • Speakers: Dual 2W speakers
  • Touch Technology: AG (Anti-Glare) coating PCAP (Projected Capacitive) touch screen with USB controller
  • Air Curtain: Integrated air curtain between the LCD panel and touch screen for thermal management
  • Mounting Options: VESA mount compatibility
ITEM SPECIFICATION
Panel Type 32-inch TFT LCD
Screen Diagonal 32-inch
Active Display Area (mm) 698.4 (H) x 392.85(V)
Pixel Pitch (mm) 0.3637 (H) x 0.3637 (W)
Number of Pixels 1,920x1,080
Contrast Ratio 4000:1
Display Color 16.7M colors (8 bit)
Brightness (cd/m) 2500 cd/m
Viewing Angle(Typ.) 89 / 89 / 89 / 89 ( R/L/U/D)
Signal Connector VGA+DVI+HDMI
Power Source AC90 ~ 264V Power Input
Power Management VESA DPMS Compliant
Operating Temperature -20°C to 60°C
Plug & Play VESA DDC 1/2B
