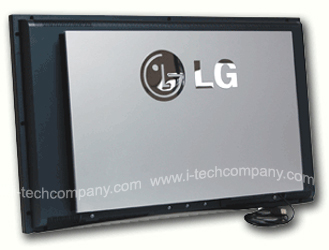

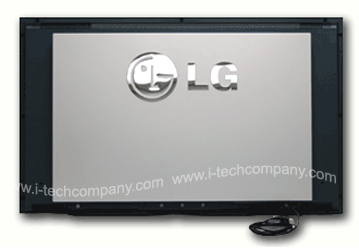

32" Industrial Touch LCD Monitor w/USB Controller (Model:CCH3200-TRB )
- Overview
- Download
32" Wide-Screen Industrial Grade LCD Integrated Touch Screen w/ USB Controller(Model:CCH3200-TRB )
X
Inquiry/Quote Request
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.
(This product is Non-Returnable)
Wide-screen Industrial - Grade 32.0" integrated Touch Screen LCD monitor designed for desktop and VESA arm-mount applications.
It utilizes a 32.0" (16x9)widescreen diagonal color TFT LCD as Industrial grade display and a integrated resistive touch screen as input device. Touch screen communication to CPU is RS232 or USB.
| Industrial LCD Display Specifications | ||
| Key Features | ||
Flat Panel Type |
TFT LCD active matrix |
|
Screen Size |
32 inch (widescreen) | |
Digital TV Standard |
HDTV-Ready | |
| Display Capabilities | ||
| Digital TV Standard | 480p (EDTV), 480i (SDTV) | |
| Broadcast Format Displayed | HDTV-Ready - Requires separate receiver to view HDTV signals. |
|
| Broadcast Format Supported | NTSC | |
| Native Aspect Ratio | 16 x 9 | |
| Image Quality | ||
| Display Resolution | 1366 x 768 pixels | |
| Brightness | 500 cd/m² | |
| Contrast Ratio | 1600:1 | |
| Output Color | 16.7 million colors | |
| Viewing Angle | horizontal: 178° vertical: 178° |
|
| Audio Features | ||
| Audio Type | Virtual Surround | |
| Audio Leveler |
With Audio Leveler | |
| Screen Text | ||
| Closed caption on mute | Without Closed Caption On Mute | |
| OSD Languages | English, German, French, Italian, Spanish, Korean | |
| Speakers | ||
| No. of Speakers | 2 Speakers | |
| Speaker Power | 2 x 10 Watt | |
| Signal Input | ||
| Input Video Signal | RGB / DVI | |
| Input Connectors | 2x component video / audio input - RCA |
|
| Included Signal Cable | 1 x A/V cable 1 x VGA cable 1 x audio cable 1 x DVI cable 1 x S-Video cable |
|
| Dimensions | ||
| Width | 31.61 in. | |
| Depth | 3.93 in. | |
| Height | 19.41 in. | |
| Weight | 36.46 lb. | |
| Weight/ As Shipped | 57.3 lb | |
| Miscellaneous | ||
| Cabinet Color | Black | |
| Includes in the Box | ||
| Power Cord A/V Cable PC VGA Cable PC Audio Cable DVI-D 19-Pin Cable S-VHS Cable User's Manual |
||
Touch Screen Typical Specifications
| COMMERCIAL Touch Screen | INDUSTRIAL Touch Screen | MILITARY Touch Screen | |
| Mechanical | |||
| Actuation Force* | 20-500 grams | 20-500 grams | 20-500 grams |
| Actuation Travel | 0.05 mm | 0.05 mm | 0.05 mm |
| Thickness (w/o sup.) | 0.50 mm | 0.50 mm | 0.50 mm |
| Thickness (w/sup.) | 2 mm (min) | 2 mm (min) | 2 mm (min) |
| Mechanical Life | 36 million + | 36 million + | 36 million + |
| Electrical | |||
| Contact Resistance: | |||
| Open | 20 Meg Ohm | 20 Meg Ohm | 20 Meg Ohm |
| Close | 10-30 K-Ohm | 10-30 K-Ohm | 10-30 K-Ohm |
| Operating Voltage | 5 Volts | 5 Volts | 5 Volts |
| Operating Current | 5 Micro Amp | 5 Micro Amp | 5 Micro Amp |
| ESD Shield | 7 KV Min | 7 KV Min | 7 KV Min |
| Optical | |||
| Light Transmissivity: | |||
| @ 550 Nano Meters | 82%-83% | 82%-83% | 82%-83% |
| Environmental | |||
| Temperature | |||
| Operating & Non-Operating: |
0 to 35°C (32° to 95°F) | -10° to 55°C (14° to 131°F) | -40° to 85°C (-40° to 185°F) |
| Altitude | |||
| Operating & Non-Operating: |
12,000 meters | 12,000 meters | 12,000 meters |
| Vibration | |||
| 0.7G @ 15 Hz | 0.7G @ 15 Hz | 0.7G @ 15 Hz | |
| 1.3G @ 25 Hz | 1.3G @ 25 Hz | 1.3G @ 25 Hz | |
| 3G @ 55 Hz | 3G @ 55 Hz | 3G @ 5 Hz | |
| Shock | |||
| 30G for 11 Mil. Sec. | 30G for 11 Mil. Sec. | 30G for 11 Mil. Sec. | |
| * Using a .375 inch diameter RTV tip. | |||
Installation Manual
Click for download driver
| Windows | Mac | Linux | ||||||||||||||
|
|
|
