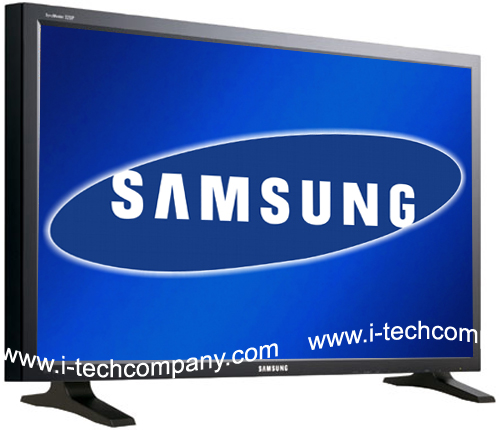

320P: 32" Widescreen Samsung LCD Multimedia Display (SamSung LCD Model:320P)
- Overview
|
The Samsung SyncMaster??320P is a brilliant high-end 32" LCD display for corporate marketplaces. With variable aspect ratios the 320P shines everywhere from boardroom videoconferencing to digital signage, such as airport flight and stock market information. With it's DNIe (Digital Natural Image engine) exclusive image compensation algorithm for brighter and clearer images. Featured are a 1366 x 768 resolution, 1000:1 contrast ratio, 450 cd/m 2 brightness level, fast 8ms (G to G) response time, and extra-wide H/V 170° viewing angle. Fully multimedia robust, the 320P sports Picture-in-Picture, Picture-by-Picture, Picture-out of-Picture for simultaneous viewing of PC and Video. Samsung Widescreen Display Features
• 32" diagonal viewable area
• 1366 x 768 resolution
• 1000:1 contrast ratio
• 170° horizontal/vertical viewing angles
• Fast 8 ms (G to G) response time
• 450 cd/m2 brightness
• No image burn-in
| 320P Quick Guide: | |
| * Instroduction | |
| * Set up | |
| * On Screen Display | |
Specifications
| Model: | 320P |
| Panel Type |
a-si TFT/PVA |
| Size |
32” |
| Maximum Resolution |
1366 x 768 |
| Pixel Pitch (mm) |
0.511(H) |
| Brightness (Typical) (cd/m2) |
450 cd/m2 |
| Contrast Ratio (Typical) |
1000:1 |
| Viewing Angle (H/V, Typical) |
170°/170° |
| Interface | Analog/Digital |
| Inout | |
| Input Video Signal |
Analog RGB, BNC, DVI-D, BNC (Video), S-Video, COmponent Video |
| Sync Type |
Separate H/V, Composite H/V, SOG |
| Input Connectors | RGB 15-Pin D-Sub, DVI-D, S-Video, BNC Video, BNC Component/PC, RS232c, 9-Pin D-Sub, Audio (2 x RCA L/R, 1 x Stereo PC) |
Bezel Color |
Black |
Physical Dimensions |
30.7”x 20.8”x 8.8” (WxHxD) inches |
| Gross Weight |
44.1 lbs |
| Speaker |
Optional |
| Special Features |
PIP/PBP/POP, RS232C, NTSC/PAL/SECAM, Automatic Auto Adjustment, Cabling Clean Touch, Vertical Input COnnection, Auto Lamp Control, Singal Compensation, Video Wall (2 x 2, 3 x 3, 1 x 5, 5 x 1, 4 x 4), Vesa Wall Mounting, HDCP, DNIe Pro |
| Size | |
| Product Dimensions: | 30.7"(W) x 20.8"(H) x 8.8"(D) (inches) with stand |
| Warranty | 3/3 (years) Parts/Labor |
