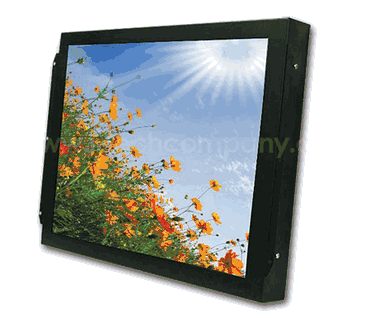

Industrial Chassis/Surface Mount Metal Housing High Brightness 32" LCD 1920*1080 380nits 3000:1 with VGA input with projective capacitive touch (Model: YCHR3200-PCT)

Industrial Chassis/Surface Mount Metal Housing High Brightness  32"  LCD  1920*1080  380nits  3000:1 with  VGA input with projective capacitive touch (Model: YCHR3200-PCT)

Industrial Chassis/Surface Mount Metal Housing High Brightness 32" LCD 1920*1080 380nits 3000:1 with VGA input with projective capacitive touch (Model: YCHR3200-PCT)

YCHR3200-PCT
  • Overview
  • Download

Feature:

High contrast color TFT-LCD Monitor support resolution up to 1920 x 1080.
Power management system conforms to VESA DPMS and EPA Energy Star standards.
Universal Power adapter.
Support DDC1 & DDC2B for Plug & Play compatibility.
Advanced OSD control for picture quality adjustment.
Detachable stand for wall-mounting adjustment.
Heavy duty monitor with steel frame.
Custom design by request.


Specifications:

Item Specification
Panel Type 32-inch TFT LCD
Screen Diagonal 32-inch
Active Display Area (mm) 698.4 (H) x 392.85(V)
Pixel Pitch (mm) 0.3637 (H) x 0.3637 (W)
Number of Pixels 1,920x1,080
Contrast Ratio 3000:1
Display Color 16.7M colors (8 bit)
Brightness (cd/m) 380 cd/m
Viewing Angle(Typ.) 89 / 89 / 89 / 89 ( R/L/U/D)
Signal Connector 15 PIN D-Sub,DVI-D
Power Source AC100 ~ 240V, Universal +/- 10%
Power Management VESA DPMS Compliant
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60°C
Plug & Play VESA DDC 1/2B
