32" IP65 Chassis Mount LCD Monitor w/ VGA, DVI,HDMI, Side OSD w/ Protective CLEAR Glass (Model: CCHW3200IP)

Front Water and dust Proof IP65/NEMA 4 with IP65 Rear 54 Solid Back housing except I/O 32" LCD Monitor, 1920x1080, 350nits VGA + DVI+ HDMI Input + Speakers, Side OSD, with protective front CLEAR glass+ BUILIT In power supply 90-240 VAC 50-60Hz included.

Front Water and dust Proof IP65/NEMA 4 with IP65 Rear 54 Solid Back housing except I/O 32" LCD Monitor, 1920x1080, 350nits VGA + DVI+ HDMI Input + Speakers, Side OSD, with protective front CLEAR glass+ BUILIT In power supply 90-240 VAC 50-60Hz included.

Inquiry/Quote Request
CCHW3200IP
  • Overview
  • Specifications
  • Download

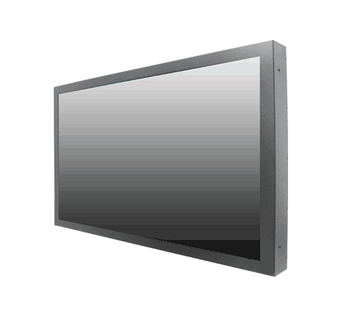

The 32-inch Wide LCD Monitor (CCHW3200IP) from iTech is a cutting-edge display designed for industrial and professional environments requiring enhanced durability and performance. With an IP65-rated dust-proof back housing, this monitor offers protection against harsh elements, ensuring reliability in demanding conditions. Its wide screen delivers vibrant visuals, making it ideal for applications such as manufacturing, automation, control systems, and outdoor setups.


Features
  • High Contrast color TFT LCD Monitor support resolution up to FULL HD (1920 x 1080)
  • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • Full consideration for touch screen installation and application.
  • Support DDC1 & DDC2B for Plug & Play compatibility.
  • Advanced OSD control for picture quality adjustment.
  • Heavy duty Monitor with steel frame.
  • Chassis Design / Wall mount
  • Protective Front CLEAR Glass
  • Speakers
Display Viewing Size Image 32"
Active Display Area (mm) 699 (H) x 395 (V)
Pixel Pitch (mm) 0.3638(H)x 0.3638(V)
Resolution 1920 x 1080
Contrast Ratio 3000: 1 (typ.)
Color 16.7M(8bits+color)
Viewing Angle -89~89 (H) ; -89~89 (V)
Brightness 350 cd/m2
Recommended Resolution 1920 x 1080 @ 60Hz
Signal Connector VGA + DVI+ HDMI
Power Source 90-240 VAC
Consumption 75W typical, normal operation
Management VESA DPMS Compliant
Optional Touch Resistive, PCAP ,IR
High Brightness 1000,1500
Auto Dimming YES
POWER in DC24V
Remote Control YES

IO		 Video: DP
Power: 12 VDC External power supply 100-240 VAC 50-60Hz included
