5"x3 3G SDI & HDMI LCD monitor 800x480, 500:1, Each Screen has: 1x 3G-HDSDI, 1x HDMI and 1x CVBS input and loop through out. (Model: SW3350)

Features

• 5-inch LCD ×3
• 800×RGB×480
• 16:9 / 4:3 adjustable
• 3G/HD/SD-SDI, HDMI, Composite video
• SDI embedded audio output via 3.5mm earphone socket
• HDMI embedded audio output via 3.5mm earphone socket
• TALLY light for each LCD unit
• Underscan / Overscan switch
• Customer editable video TITLE
• Picture zoom-in
• Picture rotate and flip

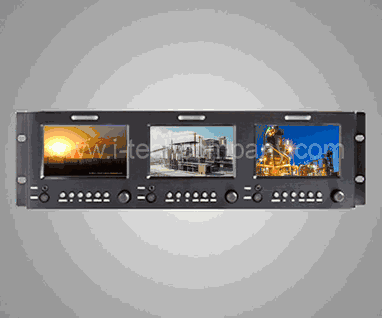

SW3350 is a 19’’ 3RU standard rack mounting LCD monitor, with 3 high resolution 5’’ LCD panels of independent input controlling, 800×RGB×480, and wide viewing angle.
Each LCD of SW3350 accepts 1 3G/HD/SD-SDI, 1 HDMI, 1 Composite video, and has 1 3G/HD/SD-SDI, 1 HDMI, 1 Composite video loop through output. Support SDI and HDMI embedded audio output and TALLY light control and display.
SW3350 has a 2-pin pole 12V DC power connector for all the 3 LCD panels.

Specifications

Input	1 BNC (3)		3G/HD/SD-SDI input
	1 BNC (3)		CVBS input
	1 HDMI (3)		HDMI in
Output	1 BNC (3)		3G/HD/SD-SDI loop through output
	1 BNC (3)		CVBS loop through output
	1 HDMI (3)		HDMI loop through output
Signal format	SDI	SMPTE-425M	1080p (60 / 59.94 / 50)
		SMPTE-274M	1080i (60 / 59.94 / 50)
			1080p (30 / 29.97 / 25 / 24 / 23.98)
		SMPTE-296M	720p (60 / 59.94 / 50)
		SMPTE-125M	480i (59.94)
		ITU-R BT.656	576i (50)
	HDMI		480i / 576i / 480p / 576p
			1080i (60 / 59.94 / 50)
			720p (60 / 59.94 / 50)
			1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	Composite		PAL/NTSC
LCD panel	Size		5-inch×3
	Resolution		800×RGB×480
	Aspect ratio		16:9 (4:3 adjustable)
	Viewing angle		H/V: 140/120
	Brightness		350cd/m2
	Contrast		500:1
Working Voltage			12V DC
Rated power consumption			≤24W
Dimension			480×130×42mm
Net Weight			2100g
Gross Weight			2600g
Working temperature			0℃～+40℃
Working humidity			10%～90%
Storage temperature			-15℃～+60℃
Storage humidity			10%～90%
