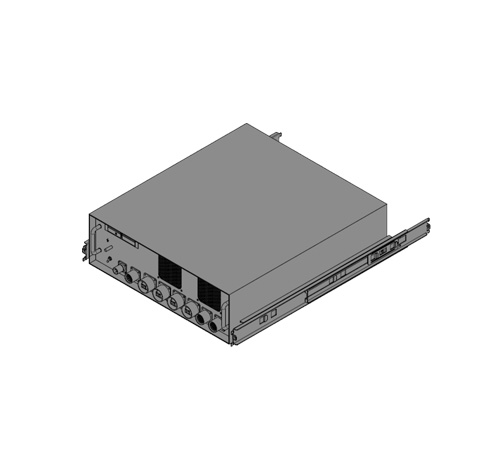

3U 19" Rack Mountable Server w/ Intel Xeon 6230, 128GB RAM, 512GB PCIe NVMe SSD, 1TB SSD, MIL-D-38999 (Model: Nmil-RM3U-X6)

3U 19" Rack Mountable with Intel Gold Class Xeon 6230, 128GB DDR4, 512GB PCIe NVMe SSD, 1TB SSD, MIL-D-38999 Mil. Circular Connectors at Front, MIL Qualified Aluminum Structure 64430

3U 19" Rack Mountable with Intel Gold Class Xeon 6230, 128GB DDR4, 512GB PCIe NVMe SSD, 1TB SSD, MIL-D-38999 Mil. Circular Connectors at Front, MIL Qualified Aluminum Structure 64430

Inquiry/Quote Request
Nmil-RM3U-X6
  • Overview
  • Specifications
  • Download
Welcome to our comprehensive collection of rugged military rackmount servers, specially engineered to excel in the most challenging environments encountered by the defense industry. At iTech Company, we understand the critical importance of reliability, durability, and performance in military-grade applications. Our lineup of tactical rackmount computers is meticulously crafted to meet and exceed the stringent requirements of modern military operations. Explore our range of ruggedized solutions tailored to deliver unwavering performance in the face of extreme conditions, ensuring mission success in even the harshest of environments.
Mechanical Chassis 19" Rack Mountable Server
Height 3U height
Material 64430 Mil. Aluminum Alloy with anti-corrosion treatment
Finish Anti-corrosion treatment
Fasteners AISI-304 Stainless steel fasteners
Cooling Method Efficient Air cooling fans
PC System M/B Grade Military grade server main board
System Chipset Intel latest C621 chipset
Processor Dual Xeon 6230 20-Core, up to 3.9GHz high-end processor
Core/Thread 20 Cores / 40 Threads
Cache 28MB L3 smart cache memory
Graphics Engine Graphics Engine ASPEED latest engine
DirectX 12.1
Open GL 4.5
Open CL 3.0
Memory RAM 128GB DDR4 3200MHz SDRAM
RAM Type SD-RAM type
Expandable 256GB

Storage SSD		 SSD – O.S.
SSD - Storage		 1 x 512GB PCIe NVMe SSD
1TB 2.5" SSD
No. of Disk Bay 2 x 2.5" Hot swappable SSD bays, each bay with a key lock
RAID Support RAID 0, 1, 5, 10 level RAID
I/O Port at Front 10G SFP+ Ethernet 4 x 20G SFP+ Optic Fiber Ethernet with MIL-D-38999 Mil. Circular Connector
1G Ethernet 4 x 1G RJ45 Ethernet ports with MIL-D-38999 Mil. Circular connector
USB 3.0 + IPMI 3 x USB3.0 + 1 x IPMI with MIL-D-38999 Mil. Circular connector
VGA 1 x VGA with MIL-D-38999 Mil. Circular connector
Power Supply Power Input AC 100~240V, 50~60 Hz
Power Consumption Around 300 W
Dimension Exclude Slides (W x H x D) 483 (W) x 133 (H) x 487 (D) mm
Slides Type Mounting rails compatible with double-lock mechanism
Depth Aproximate 600 ~650 mm
Weight Weight Around 13~15 Kgs
O.S. Support RHEL Red Hat Enterprise Linux 8.0 or newer
Preloaded RHEL 8.x (64 bit) or higher versions
Windows Support Windows 10, 10 Pro, 11, Windows Server
Environmental Vibration Compliant
High Temperature Operating : +55 deg. +/- 3 deg. C
Storage : +70 deg. +/- 3 deg. C
Damp Heat Compliant
Low Temperature Operating : 0 deg. +/- 3 deg. C
Storage : -20 deg. +/- 3 deg. C
Drip Proof Compliant
Tropical Exposure Compliant
Corrosion (Salt) Compliant
Note : Test Cost Test cost is required if you need test certificate
