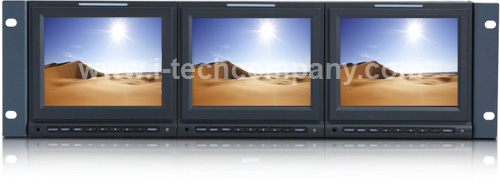

3U 5.6" x 3 Rackmount LCD Monitor (Model: RTM3U3-560HD)

Overview
Download

Rack mount LCD monitor have been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series are working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.

Rack mount monitors using industrial A + grade LCD panel and all metal shell, have been processed the high/low temperature aging and 0 ~ 120Hz vibration test before leaving factory, which make sure the equipment run 24 hours/ 365 days

Easy to operate, time-saving
Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode , you can operate the full range products, time-saving and convenient.

A special design technique of combining metal and plastic can perfectly reflect much richer details change in the industrial design, Taking into account the convenience of application, but also reflecting the aesthetic experience of exterior design .All metal shell make the product more robust and durable, also is a good solution to the heat dissipation problem.

Specification

Screen Size	5.6”
Resolution	640（H）x480（V）
Dot Pitch	0.0588（H）x0.1764（V）mm
Aspect Ratio	4:3 / 16:9 Switchable
Brightness	350cd/m²
Contrast	500:1
Response Time	10 ms
Viewing Angle	H 140° / V 120°
Voltage Input	DC12V
Voltage Range	DC 6~36V
Power Consumption	≤27W
Installation	Rackmount
Monitor Size	L 432xH 132xD 69.8 mm
Installation Size	L 482.6xH 132xD 69.8 mm（≤3U）
Weight	3.1 kg

Inputs & Functions

Model Function		RTM3U3-560HD	RTM3U3-560S	RTM3U3-560	Remark
Video input	Composite	●	●	●	BNC x 1line x 3 1.0 VP-p±3 dB
	Component (Y/Pb/Pr）	●	●	●	BNC x 1line x 3
	SD-SDI	●	●		BNC x 1line x 3
	HD-SDI	●			BNC x 1line x 3
Audio input		●	●	●	RCA x 1Line x 3 (dual channel)
Audio Monitoring		●	●	●	Rear Speaker: 2 x 2W (8Ω) Earphone: 3.5mm jack
SDI Embedded Audio		●	●		PPM / UV
Video output	Composite	●	●	●	BNC x 1line x 3 Loop through 75Ω automatic termination
	Component (Y/Pb/Pr）	●	●	●	BNC x 1linex 3
	SD-SDI	●	●		BNC x 1lineX3
	HD-SDI	●			BNC x 1lineX3
TALLY		●	●	●	Red/green two colors

RTM3U3-560HD Functions table

Signal Function	SDI	Component	COMPOSITE (CVBS)
Marks：Safety mark，Center mark，Title frame	●	●	●
Scaling： 16:9，4:3，LETTER BOX，Built-in scan，Overscan	●	●	●
Color temperature 9300/6500 , adjustable	●	●	●
4 channels audio meter display	●
Red/Green two colors TALLY display（hardware TALLY）	●	●	●
Monochrome（BLUE ONLY）	●	●	●

Function Sketch Front View

1 TALLY（indicator）
2 Power indicator
3 Power switch
4 Audio switch / Mute key
5 Value+ / Volume up
6 Value- / Volume down
7 Adjust downwards / Value switch
8 Adjust upwards / Value switch
9 Menu
10 Input signal switch
11 4:3 / 16:9 Aspect ration switch
12 Headphone jack

Function Sketch Back View

13 TALLY input
14 Speaker
15 DC 12V power input
16 Power switch
* RTM3U3-560 no SDI input / output
17 Composite input / output
18.19.20 Component（Y/Pr/Pb）input / output
21 Audio input
22 HD/SD-SDI input / output
